A good PCB layout for the MP1542DK-LF-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good airflow around the component. Use a 2-3 layer PCB with a solid ground plane to reduce thermal resistance. Keep the input and output capacitors close to the device to minimize parasitic inductance.
To optimize output voltage accuracy and stability, ensure that the input voltage is within the recommended range (4.5V to 18V). Use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF to 22uF). Additionally, minimize the distance between the output capacitor and the device to reduce parasitic inductance.
A 1uF to 10uF ceramic capacitor (X5R or X7R dielectric) is recommended for the input capacitor. This value provides a good balance between filtering and stability. Ensure the capacitor is rated for the maximum input voltage and has a low ESR to minimize voltage ripple.
To ensure the device operates within the recommended junction temperature range (TJ = -40°C to 125°C), provide adequate heat sinking, and ensure good airflow around the component. Monitor the device's thermal performance using thermal imaging or temperature sensors. Avoid overheating by keeping the device within the recommended operating conditions.
To ensure EMI and EMC compliance, follow proper PCB layout practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing loop areas. Use shielded cables and connectors, and consider adding EMI filters or common-mode chokes to reduce emissions. Ensure the device is operated within the recommended frequency range (500 kHz to 1.4 MHz).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP1542DK-LF-Z Overview

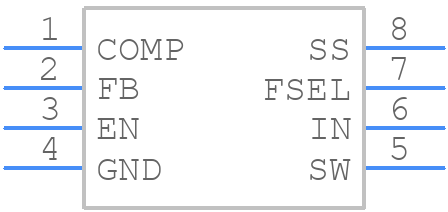

Use the download button to access the MP1542DK-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP154,
or try a keyword search, such as Switching Regulator or Controllers
