MP156W-BP - MCC

MP156W-BP Details

• Manufacturer Part Number:

  MP156W-BP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

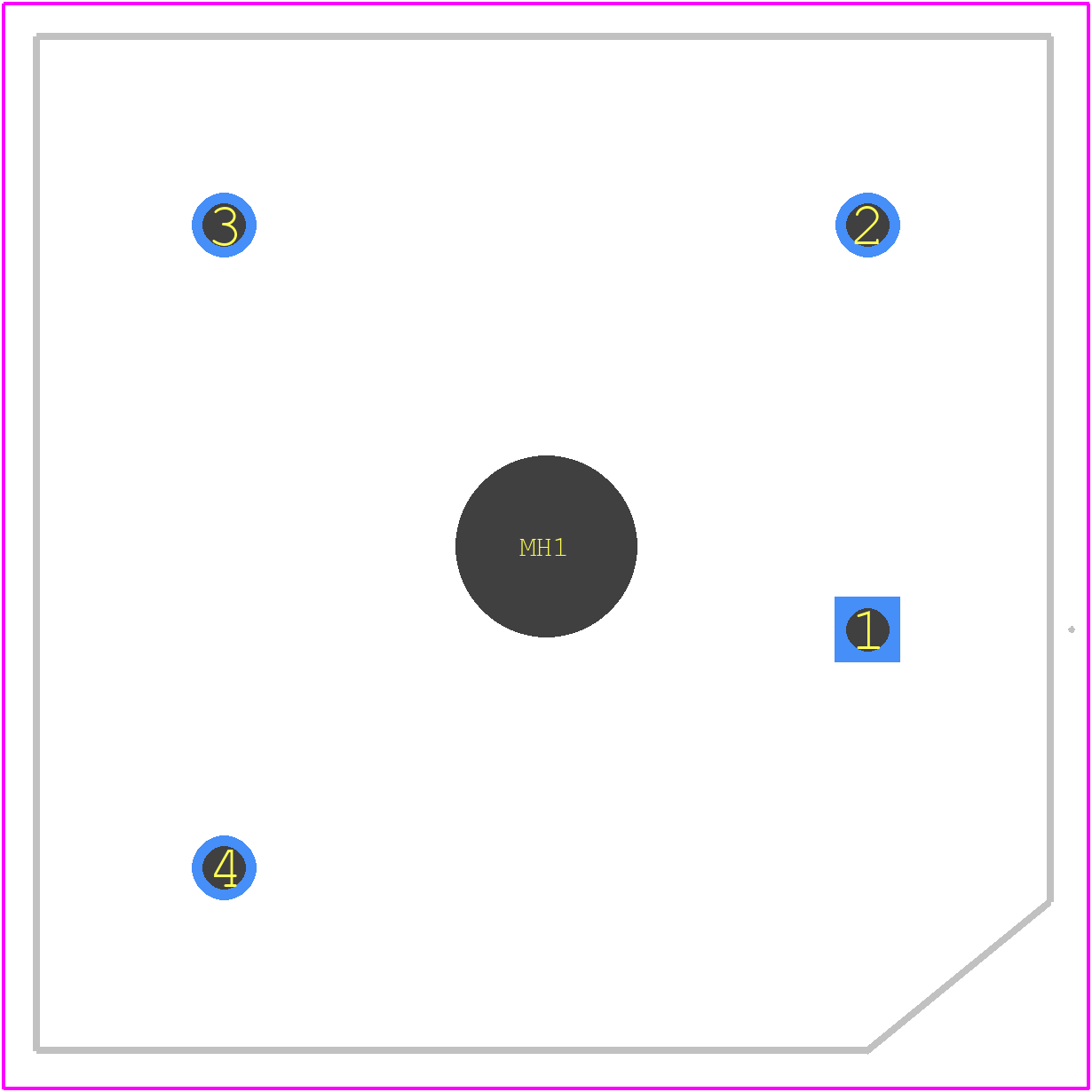

• Package Description:

  MP-50W, 4 PIN

• Pin Count:

  4

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  Micro Commercial Components

• YTEOL:

  6.85

• Breakdown Voltage-Min:

  600 V

• Case Connection:

  ISOLATED

• Configuration:

  BRIDGE, 4 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  BRIDGE RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.1 V

• JESD-30 Code:

  S-PUFM-W4

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Pk Forward Current-Max:

  300 A

• Number of Elements:

  4

• Number of Phases:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  125 °C

• Output Current-Max:

  15 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  SQUARE

• Package Style:

  FLANGE MOUNT

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Reference Standard:

  UL RECOGNIZED

• Rep Pk Reverse Voltage-Max:

  600 V

• Reverse Current-Max:

  5 µA

• Surface Mount:

  NO

• Terminal Form:

  WIRE

• Terminal Position:

  UPPER

• Time@Peak Reflow Temperature-Max (s):

  10
