A good PCB layout for the MP2015AGQ-33-Z should include a solid ground plane, wide power traces, and a thermal relief pattern around the device. Additionally, placing the device near a thermal pad or heat sink can improve thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and consider derating the device's output current. Additionally, using a thermal interface material (TIM) between the device and heat sink can improve thermal conductivity.
Exceeding the maximum junction temperature (TJ) rating can lead to reduced device lifespan, decreased performance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the feedback resistors are correctly connected and that the output voltage is within the specified range. Also, verify that the device is not operating in a dropout condition.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. This helps to filter out high-frequency noise and ensure stable operation. The capacitor should be placed as close to the device's input pins as possible.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2015AGQ-33-Z Overview

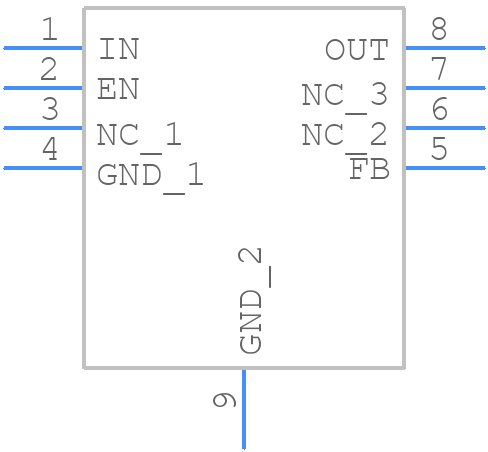

Use the download button to access the MP2015AGQ-33-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP201,
or try a keyword search, such as Linear Regulator ICs
