A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, ensuring good airflow, and minimizing thermal resistance. A 2-3 layer PCB with a solid ground plane is recommended. Additionally, placing vias under the device can help to dissipate heat.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Ensure the input voltage is within the recommended range (4.5V to 18V), and the output voltage is set correctly using the FB pin. Also, monitor the output current to prevent overcurrent conditions.
To prevent damage, handle the device by the body or the pins, avoiding touching the die. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD). Store the device in an anti-static bag or wrap it in anti-static material. Avoid bending or flexing the pins, and use a soldering iron with a temperature-controlled tip.
To troubleshoot issues, start by verifying the input voltage, output voltage, and output current. Check the PCB layout for thermal issues, and ensure the device is properly soldered. Use an oscilloscope to check for voltage ripple or oscillations. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
To ensure EMI and EMC compliance, use a shielded enclosure, and consider adding EMI filters or ferrite beads to the input and output lines. Keep the PCB layout compact, and use a solid ground plane to reduce radiation. Follow the guidelines in the datasheet and relevant industry standards (e.g., CISPR 22) for EMI and EMC compliance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2019GN-33-Z Overview

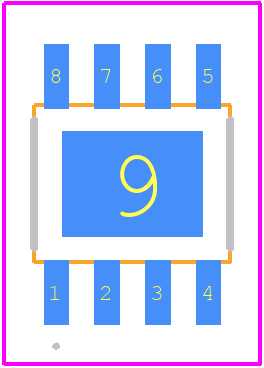

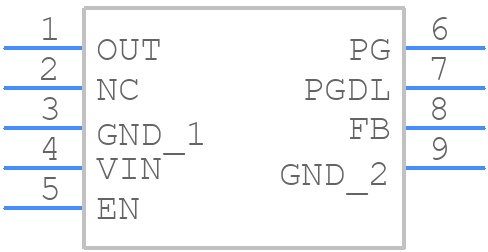

Use the download button to access the MP2019GN-33-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP201,
or try a keyword search, such as Linear Regulator ICs
