MP2160GQH-Z - Monolithic Power Systems (MPS)

Description: Switching Voltage Regulators 1.2A Peak,6V Sync Step Down Switcher

Download MP2160GQH-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

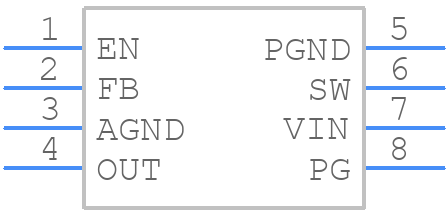

Symbol
MP2160GQH-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP2160GQH-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MP2160GQH-Z-2
click to zoom
3D Models
MP2160GQH-Z - Monolithic Power Systems (MPS) - 3D model - Other - MP2160GQH-Z-2
click to zoom

MP2160GQH-Z Details

  • Manufacturer Part Number:

    MP2160GQH-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    3

  • Additional Feature:

    ADJUSTABLE OUTPUT VOLTAGE FROM 0.6 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.06,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4200 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    1.5 mm

MP2160GQH-Z Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MP2160GQH-Z. Ensure a solid ground plane, keep the input and output capacitors close to the IC, and use short, wide traces for the power lines. Avoid vias and narrow traces near the switching node.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating above the output voltage. X5R or X7R ceramic capacitors are good options.
  • The MP2160GQH-Z can operate up to 85°C ambient temperature, but derating is required above 70°C. Ensure good airflow and heat sinking to maintain a safe junction temperature (TJ) below 125°C.
  • Monitor the IC's temperature using the thermal monitoring pin (TMP). Implement thermal shutdown protection by connecting a thermistor or thermal sensor to the TMP pin. Ensure good heat sinking and airflow around the IC.
  • The recommended input voltage range is 4.5V to 18V. Operating outside this range may affect efficiency, stability, or reliability. Ensure the input voltage is within the specified range for optimal performance.
