The recommended PCB layout for the MP2229GQ-P involves placing the input and output capacitors close to the IC, using wide traces for the power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout. Additionally, the output capacitor should have a low ESR, and the input capacitor should be placed close to the IC. A minimum output capacitance of 10uF is recommended.
The MP2229GQ-P can operate reliably up to an ambient temperature of 85°C. However, the junction temperature should not exceed 125°C. It's essential to ensure proper thermal design and heat dissipation to prevent overheating.
While it's possible to use a different inductor value or type, it's not recommended. The recommended inductor value and type are optimized for the MP2229GQ-P's performance and efficiency. Using a different inductor may affect the converter's stability, efficiency, and output voltage regulation.
To troubleshoot issues with the output voltage or current, start by checking the input voltage, output voltage, and output current using an oscilloscope or multimeter. Verify that the component values and PCB layout match the recommended design. Check for any signs of overheating, and ensure that the input and output capacitors are of good quality and properly soldered.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2229GQ-P Overview

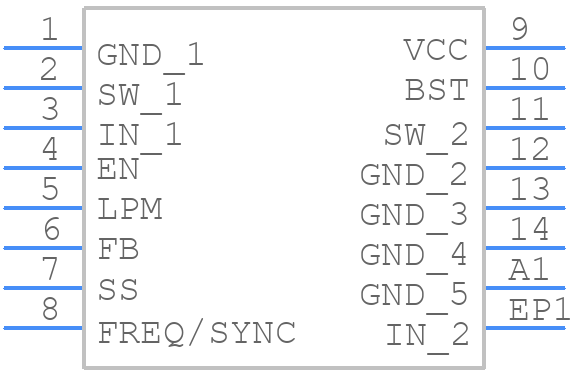

Use the download button to access the MP2229GQ-P schematic symbol, PCB footprint, and 3D model.
