A good PCB layout for the MP2329GG-Z should minimize the loop area of the input and output capacitors, keep the input and output traces short and wide, and avoid routing sensitive analog signals near the switching node.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage sense line.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the internal components.
While it's possible to use a different inductor value or type, it's not recommended as it may affect the converter's performance, efficiency, and stability. The recommended inductor value and type are carefully selected to ensure optimal performance.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values against the recommended values. Use an oscilloscope to inspect the output voltage and switching node waveforms for signs of oscillation or ringing.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2329GG-Z Overview

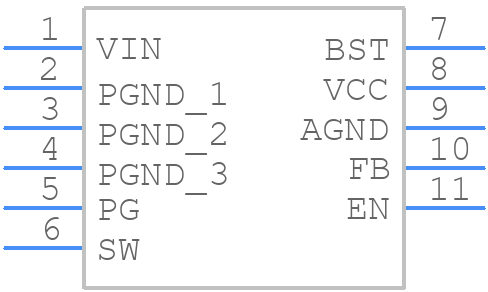

Use the download button to access the MP2329GG-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP232,
or try a keyword search, such as Switching Regulator or Controllers
