The recommended PCB layout for the MP2372DN-LF-Z involves placing the input and output capacitors close to the IC, using wide copper traces for the power paths, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
To ensure the device operates within the safe operating area (SOA), monitor the input voltage, output current, and junction temperature. Make sure the input voltage does not exceed the maximum rating, and the output current does not exceed the maximum continuous current rating. Also, ensure the junction temperature does not exceed 125°C.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be rated for the input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
The output voltage can be adjusted by connecting a resistor divider network between the output and the FB pin. The resistor values can be calculated using the formula provided in the datasheet. The output voltage can be adjusted from 0.8V to 5.5V.
The EN pin is an enable input that allows the device to be turned on or off. When the EN pin is high, the device is enabled, and when it is low, the device is disabled. The EN pin can be connected to a logic signal or a switch to control the power-on and power-off sequence.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2372DN-LF-Z Overview

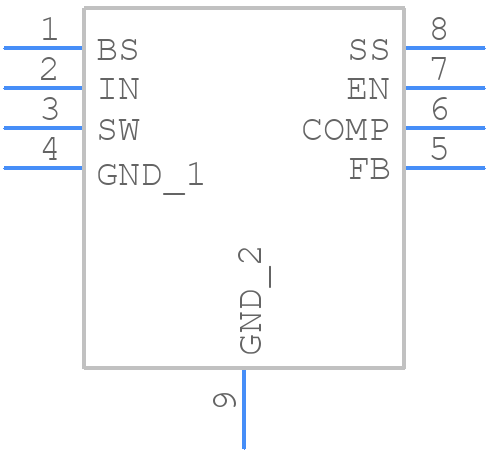

Use the download button to access the MP2372DN-LF-Z schematic symbol, PCB footprint, and 3D model.
