The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the input and output capacitors close to the device and using short, wide traces can help reduce thermal resistance.
To ensure stability and prevent oscillations in the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less, and to place the output capacitor close to the device. Additionally, using a low-ESR input capacitor and keeping the input and output traces short and separate can help prevent oscillations.
The maximum ambient temperature for reliable operation of the MP2604DQ-LF-Z is 85°C, with a derated output current. However, it is recommended to keep the ambient temperature below 70°C for optimal performance and reliability.
Yes, the MP2604DQ-LF-Z is qualified to the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability applications. However, it is recommended to consult with Monolithic Power Systems for specific requirements and testing.
The power dissipation of the device can be calculated using the formula Pd = (Vin - Vout) x Iout. The junction temperature can be estimated using the thermal resistance (RθJA) and the power dissipation, according to the formula Tj = Ta + (RθJA x Pd).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2604DQ-LF-Z Overview

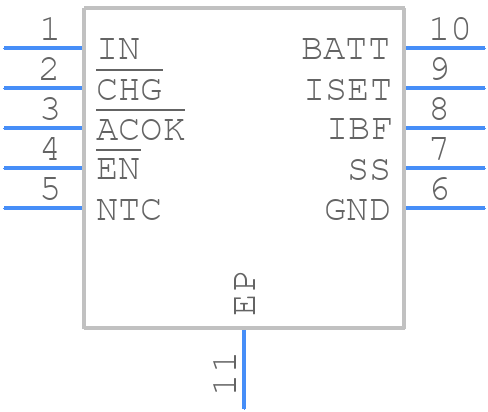

Use the download button to access the MP2604DQ-LF-Z schematic symbol, PCB footprint, and 3D model.
