MP2615AGQ-Z footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

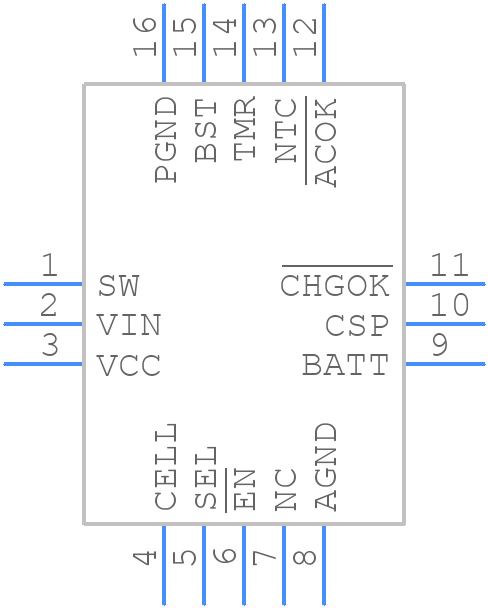

Symbol

click to zoom

PCB Footprints

MP2615AGQ-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-16 (3mm x 3mm)

click to zoom

3D Models

MP2615AGQ-Z - Monolithic Power Systems (MPS) - 3D model - Other - QFN-16 (3mm x 3mm)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MP2615AGQ-Z
Part Number MP2615AGQ-Z
Manufacturer Monolithic Power Systems (MPS)
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN-16 (3mm x 3mm)
Released Date Mar 29, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MP2615AGQ-Z Details

Manufacturer Part Number:
MP2615AGQ-Z
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-16
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
24 Weeks
Manufacturer:
Monolithic Power Systems
YTEOL:
7
Adjustable Threshold:
YES
Analog IC - Other Type:
LINEAR BATTERY CHARGER
JESD-30 Code:
S-XQCC-N16
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
4.75 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Threshold Voltage-Nom:
+4.36V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
