Part Image

MP2617BGL-Z - Monolithic Power Systems (MPS)

Description: 3A Switching Charger with NVDC Power Path Management For Single Cell Li+ Battery

Download MP2617BGL-Z Model

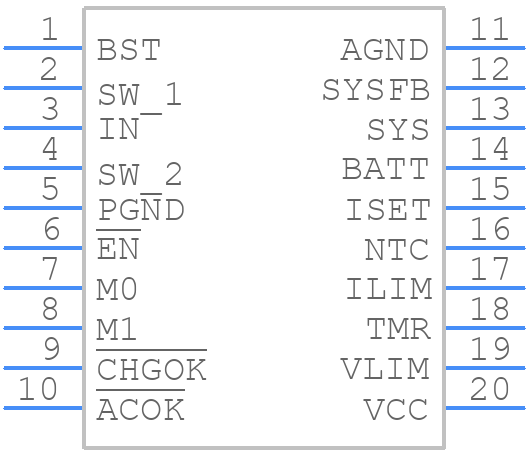

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MP2617BGL-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MP2617BGL-Z-1
click to zoom
3D Models
MP2617BGL-Z - Monolithic Power Systems (MPS)  - 3D model - Other - MP2617BGL-Z-1
click to zoom

MP2617BGL-Z Details

  • Manufacturer Part Number:

    MP2617BGL-Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    58 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • Risk Rank:

    0.97

  • YTEOL:

    6.26

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MP2617BGL-Z Overview

Use the download button to access the MP2617BGL-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP261, or try a keyword search, such as Power Management Circuits

Parts related to MP2617BGL-Z

Showing 0 results

MP2617BGL-Z Alternates

Showing results

Image Part Number Model
Part Image MP2617BGL Monolithic Power Systems

Power Supply Support Circuit, Adjustable, 1 Channel, QFN-20
