MP2617HGL-Z - Monolithic Power Systems (MPS)

Description: Battery Management 14V, 3A Single Cell Switching Charger

Download MP2617HGL-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

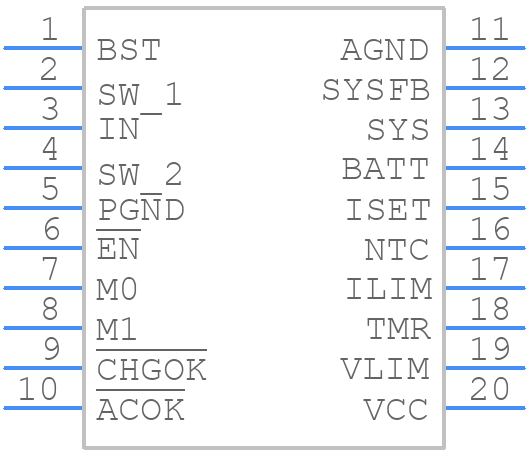

MP2617HGL-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP2617HGL-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MP2617AGL-P-1
click to zoom
3D Models
MP2617HGL-Z - Monolithic Power Systems (MPS) - 3D model - Other - MP2617AGL-P-1
click to zoom

MP2617HGL-Z Details

  • Manufacturer Part Number:

    MP2617HGL-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    6.25

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-XQCC-N20

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC20,.12X.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.95V

  • Width:

    3 mm

MP2617HGL-Z Frequently Asked Questions (FAQs)

  • The MP2617HGL-Z can handle a maximum input voltage of 24V, but it's recommended to keep it below 20V for optimal performance and reliability.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the output voltage within the recommended range of 0.8V to 15V.
  • The MP2617HGL-Z can provide a maximum output current of 1.5A, but it's recommended to keep it below 1.2A for optimal performance and reliability.
  • The power dissipation of the MP2617HGL-Z can be calculated using the formula: Pd = (Vin - Vout) x Iout. Make sure to keep the power dissipation below the maximum rating of 2.5W.
  • The thermal shutdown temperature of the MP2617HGL-Z is 150°C. The device will shut down when the junction temperature exceeds this value, and will restart when the temperature drops below 130°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP2617HGL-Z Overview

Use the download button to access the MP2617HGL-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP261, or try a keyword search, such as Power Management Circuits
