MP2623GR-Z - Monolithic Power Systems (MPS)

Description: Battery Management 2A 1-2Cell Switching LiFePO4 Bat Charger 16-QFN (4x4) , 24V , -40°C ~ 125°C (TJ)

Download MP2623GR-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

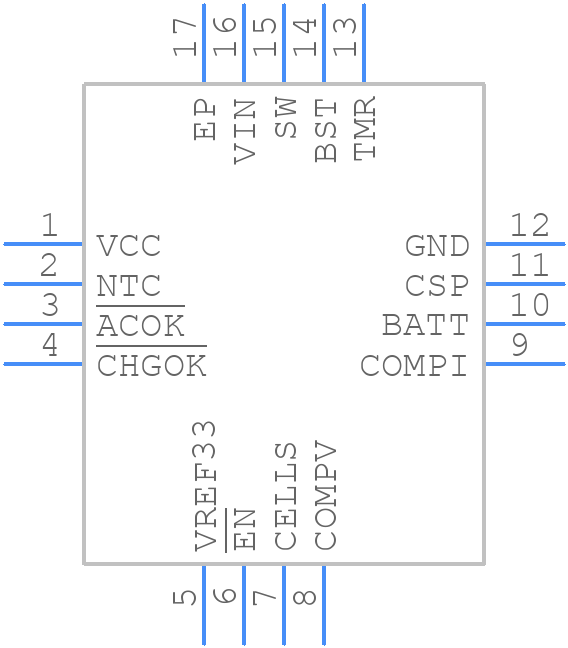

MP2623GR-Z - Monolithic Power Systems (MPS) PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 (4 x 4mm)
click to zoom
3D Models
MP2623GR-Z - Monolithic Power Systems (MPS)  - 3D model - Quad Flat No-Lead - QFN16 (4 x 4mm)
click to zoom

MP2623GR-Z Details

  • Manufacturer Part Number:

    MP2623GR-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    19 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    19 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

MP2623GR-Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the MP2623GR-Z should follow the guidelines provided in the datasheet, including keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the loop area of the high-frequency current paths. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • The choice of input and output capacitors depends on the specific requirements of your application, including the input voltage, output voltage, and output current. In general, it's recommended to use low-ESR capacitors with a high ripple current rating to minimize voltage ripple and ensure stable operation. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult with a capacitor manufacturer or a qualified engineer for specific recommendations.
  • The MP2623GR-Z is rated for operation up to 85°C ambient temperature, but the actual maximum temperature may be lower depending on the specific application and the thermal design of the system. It's recommended to perform thermal analysis and testing to ensure that the device operates within its specified temperature range.
  • To ensure EMC in your design, it's recommended to follow good design practices, including using a shielded enclosure, keeping the MP2623GR-Z and other noise-sensitive components away from noise sources, and using filtering and shielding to reduce EMI. Additionally, it's recommended to perform EMC testing and certification to ensure compliance with relevant regulations.
  • The recommended startup sequence for the MP2623GR-Z is to first apply the input voltage, then enable the device by pulling the EN pin high. This ensures that the device starts up in a controlled manner and minimizes the risk of damage or malfunction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
