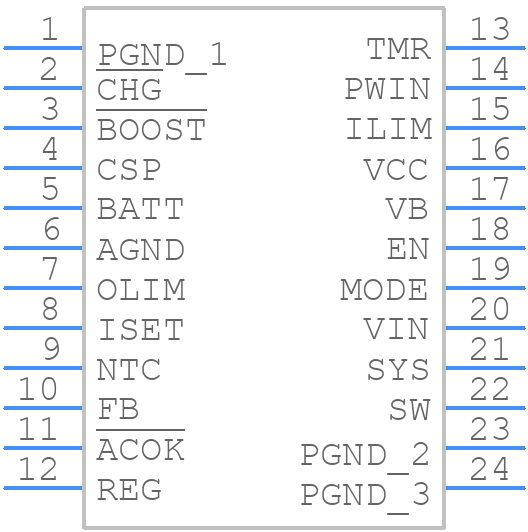

MP2637GR - Monolithic Power Systems (MPS)

MP2637GR Details

• Manufacturer Part Number:

  MP2637GR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  QFN-24

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Monolithic Power Systems

• YTEOL:

  6

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  LINEAR BATTERY CHARGER

• JESD-30 Code:

  S-XQCC-N24

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  OTHER

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  4 mm
