MP2639BGR-Z - Monolithic Power Systems (MPS)

Description: IC BATT CHG LI-ION 1CELL 26QFN

Download MP2639BGR-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

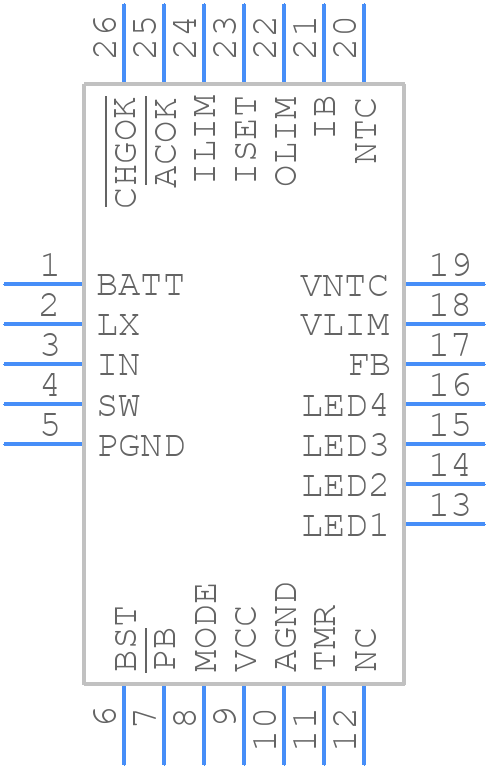

MP2639BGR-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP2639BGR-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-26 (4mmX4mm)
click to zoom
3D Models
MP2639BGR-Z - Monolithic Power Systems (MPS) - 3D model - Other - QFN-26 (4mmX4mm)
click to zoom

MP2639BGR-Z Details

  • Manufacturer Part Number:

    MP2639BGR-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-26

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2019-09-05

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-XQCC-N26

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC26,.16SQ(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4.14V

  • Width:

    4 mm

MP2639BGR-Z Frequently Asked Questions (FAQs)

  • The MP2639BGR-Z can handle a maximum input voltage of 24V, but it's recommended to keep it below 18V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the output voltage within the recommended range of 0.8V to 15V.
  • The MP2639BGR-Z can provide a maximum output current of 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.
  • The soft-start time of the MP2639BGR-Z can be configured by adding a capacitor between the SS pin and GND. The soft-start time is proportional to the capacitance value, with a larger capacitance resulting in a longer soft-start time.
  • The EN pin is an enable input that allows the user to turn the regulator on or off. To use it, simply tie the EN pin to VIN to enable the regulator, or tie it to GND to disable it.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP2639BGR-Z Overview

Use the download button to access the MP2639BGR-Z schematic symbol, PCB footprint, and 3D model.
