A good PCB layout for the MP28164GD-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good airflow around the component. Use a 2-3 layer PCB with a solid ground plane to reduce thermal resistance. Keep the input and output capacitors close to the device to minimize parasitic inductance.
To optimize output voltage accuracy and stability, ensure that the input voltage is within the recommended range (4.5V to 18V). Use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF). Additionally, minimize the distance between the output capacitor and the device to reduce parasitic inductance.
The recommended input capacitor value is 10uF to 22uF, with an X5R or X7R dielectric type. This ensures a low ESR and sufficient capacitance to filter out input voltage ripple and noise. A ceramic capacitor with a voltage rating of 25V or higher is recommended.
To protect the device from overcurrent and overheating, implement overcurrent protection (OCP) and overtemperature protection (OTP) mechanisms. The MP28164GD-Z has a built-in OCP feature, but you can also add external protection using a fuse or a current sense resistor. For OTP, use a thermistor or a thermal sensor to monitor the device temperature and shut down the device if it exceeds the maximum operating temperature (150°C).
The recommended operating frequency range for the MP28164GD-Z is 500 kHz to 1.5 MHz. Operating within this range ensures optimal efficiency, stability, and noise reduction. However, the device can operate up to 2 MHz, but with reduced efficiency and increased noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP28164GD-Z Overview

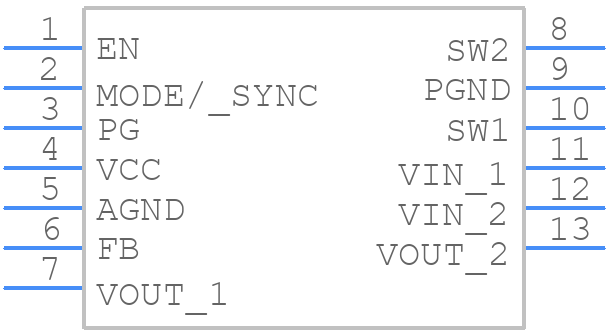

Use the download button to access the MP28164GD-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP281,
or try a keyword search, such as Switching Regulator or Controllers
