MP28167GQ-B-P footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

MP28167GQ-B-P - Monolithic Power Systems (MPS)

Description: Configurable VOUT via the FB Pin Wide 2.8V to 22V Operating VIN Range 0.08V to 1.637V Reference Voltage (VREF) Range with 0.8mV Resolution via the I 2C (1) (Default 0.54V VREF) 3A Output Current (IOUT) and 4A Input Current (IIN) Four Low On Resistance (RDS(ON)) Internal Buck Power MOSFETs Adjustable, Accurate CC IOUT_LIMIT with Internal Sensing MOSFET via the I 2C 500kHz, 750kHz, 1MHz, or 1.25MHz Selectable Switching Frequency (fSW) (Default 1.25MHz fSW) Output OVP with Hiccup Mode Output Short-Circ

Download MP28167GQ-B-P Model

Schematic
symbols

PCB
footprints

3D
models

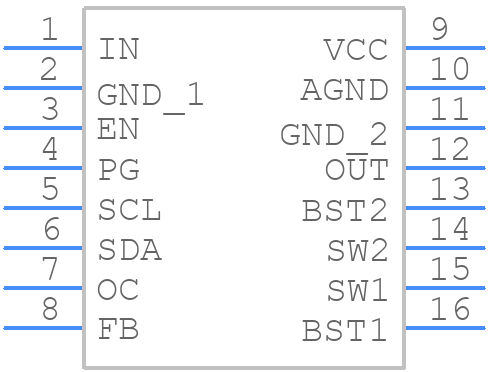

Symbol

click to zoom

PCB Footprints

MP28167GQ-B-P - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-16 (3mmx3mm)-1

click to zoom

3D Models

MP28167GQ-B-P - Monolithic Power Systems (MPS) - 3D model - Other - QFN-16 (3mmx3mm)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MP28167GQ-B-P
Part Number MP28167GQ-B-P
Manufacturer Monolithic Power Systems (MPS)
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN-16 (3mmx3mm)-1
Released Date Aug 12, 2025
Last Modified Date Aug 12, 2025 6:17 AM UTC
Pinout / Pin List Click Here (Member Only)

MP28167GQ-B-P Details

Manufacturer Part Number:
MP28167GQ-B-P
Manufacturer:
Monolithic Power Systems

Trust Checks

Community Provided

System Verified

Community Approved

MP28167GQ-B-P Overview

Use the download button to access the MP28167GQ-B-P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MP281, or try a keyword search, such as Switching Regulator or Controllers
