MP2918GF-Z footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

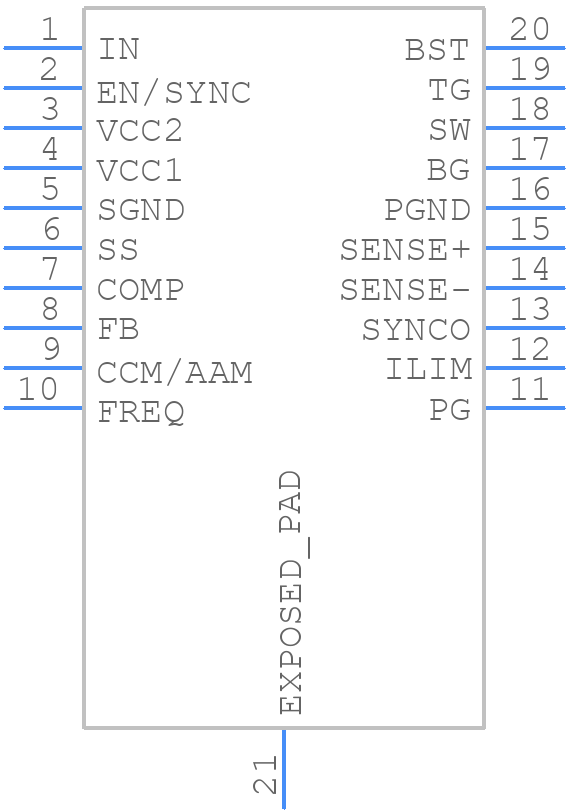

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MP2918GF-Z
Part Number MP2918GF-Z
Manufacturer Monolithic Power Systems (MPS)
Pin Count 21
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TSSOP-20 EP
Released Date May 25, 2025
Last Modified Date May 25, 2025 10:44 AM UTC
Pinout / Pin List Click Here (Member Only)

MP2918GF-Z Details

Manufacturer Part Number:
MP2918GF-Z
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TSSOP-20
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
24 Weeks
Manufacturer:
Monolithic Power Systems
YTEOL:
8
Additional Feature:
REGULATING OUTPUT VOLTAGE MAX IS 25
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
40 V
Input Voltage-Min:
4 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
6.5 mm
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1000 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm

MP2918GF-Z Frequently Asked Questions (FAQs)

The maximum input voltage that can be applied to the MP2918GF-Z is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
To ensure the stability of the output voltage, it's recommended to use a minimum output capacitance of 10uF with an ESR of 1 ohm or less, and to keep the output voltage within the specified range of 0.8V to 15V.
The maximum output current that the MP2918GF-Z can deliver is 1.8A, but it's recommended to keep it below 1.5A for optimal performance and reliability.
The soft-start feature of the MP2918GF-Z can be configured by connecting a capacitor from the SS pin to GND. The soft-start time can be calculated using the formula: tSS = 1.2 x CSS x RSS, where CSS is the capacitance and RSS is the resistance.
The EN (Enable) pin is used to enable or disable the regulator. When the EN pin is high, the regulator is enabled, and when it's low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.
