The recommended PCB layout for the MP3320AGG-Z involves placing the input and output capacitors close to the IC, using wide traces for the power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
To ensure stability, it's essential to follow the recommended component values and PCB layout. Additionally, the output capacitor should have a low ESR, and the feedback resistors should be chosen to ensure a stable gain margin. A minimum output capacitance of 10uF is recommended.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the IC.
The MP3320AGG-Z is rated for operation up to 85°C, but it's essential to consider the thermal derating of the IC and the surrounding components. Ensure that the junction temperature remains below 125°C to prevent damage and ensure reliable operation.
To troubleshoot issues, start by verifying the input voltage, output voltage, and feedback resistors. Check for any signs of overheating, and ensure that the PCB layout and component values meet the recommended specifications. Use an oscilloscope to monitor the output voltage and identify any oscillations or noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP3320AGG-Z Overview

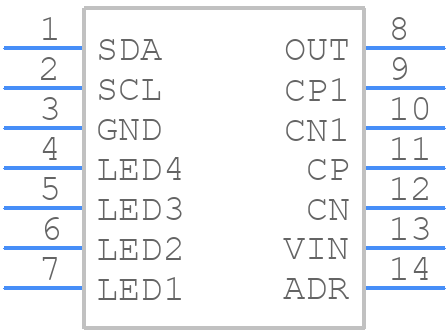

Use the download button to access the MP3320AGG-Z schematic symbol and PCB footprint.
