MP3320BGG-Z - Monolithic Power Systems (MPS)

Description: LED Driver IC 4 Output DC DC Regulator Step-Up (Boost) Analog, I2C, PWM Dimming 102mA 14-QFN (2x2)

Download MP3320BGG-Z Model

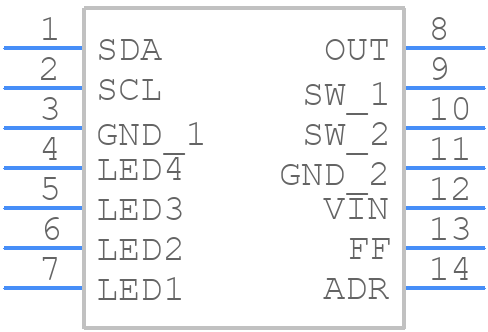

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MP3320BGG-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-14 (2mmx2mm)-2
click to zoom
3D Models
MP3320BGG-Z - Monolithic Power Systems (MPS)  - 3D model - Other - QFN-14 (2mmx2mm)-2
click to zoom

MP3320BGG-Z Details

  • Manufacturer Part Number:

    MP3320BGG-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-14

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N14

  • Length:

    2 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC14,.08SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.7 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

  • fmax-Min:

    0.4 MHz

MP3320BGG-Z Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MP3320BGG-Z involves keeping the input and output capacitors close to the IC, using wide traces for power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout. Additionally, the output capacitor should have a low ESR, and the input capacitor should be placed close to the VIN pin. A minimum of 10uF output capacitance is recommended.
  • The MP3320BGG-Z can operate reliably up to an ambient temperature of 85°C. However, the junction temperature should not exceed 125°C. It's essential to ensure proper thermal design and heat dissipation to prevent overheating.
  • While ceramic capacitors can be used, they may not be the best choice for the output filter capacitor due to their high ESR. A low-ESR electrolytic or polymer capacitor is recommended to ensure stability and prevent oscillations.
  • The power dissipation in the MP3320BGG-Z can be calculated using the formula: Pd = (VIN - VOUT) x IOUT. The heat generation can be estimated using the thermal resistance (RθJA) and the power dissipation. A thermal design calculator or simulation tool can also be used to estimate the heat generation and junction temperature.
