MP3362GJ-Z - Monolithic Power Systems (MPS)

Description: LED Lighting Drivers Single String, 3V Vin-min, 36V VoutBoost LED Driver

Download MP3362GJ-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

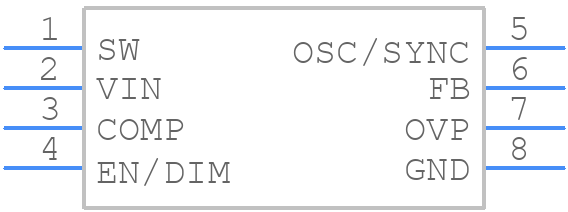

Symbol
MP3362GJ-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP3362GJ-Z - Monolithic Power Systems (MPS) PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TSOT23-8
click to zoom
3D Models
MP3362GJ-Z - Monolithic Power Systems (MPS) - 3D model - SOT23 (8-Pin) - TSOT23-8
click to zoom

MP3362GJ-Z Details

  • Manufacturer Part Number:

    MP3362GJ-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 8 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.9 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.11

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    1.6 mm

MP3362GJ-Z Frequently Asked Questions (FAQs)

  • The MP3362GJ-Z can handle a maximum input voltage of 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the output capacitor is placed close to the output pin of the IC.
  • The MP3362GJ-Z can provide a maximum output current of 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.
  • The output voltage of the MP3362GJ-Z can be adjusted by using a resistive divider network between the output pin and the ground pin. The output voltage can be calculated using the formula: Vout = 0.8V * (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The thermal shutdown temperature of the MP3362GJ-Z is 150°C. When the junction temperature exceeds this value, the IC will shut down to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP3362GJ-Z Overview

Use the download button to access the MP3362GJ-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP336, or try a keyword search, such as Display Drivers
