MP3394SGS - Monolithic Power Systems (MPS)

Description: LED Lighting Drivers 4Ch 350mA Boost WLED Controller

Download MP3394SGS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

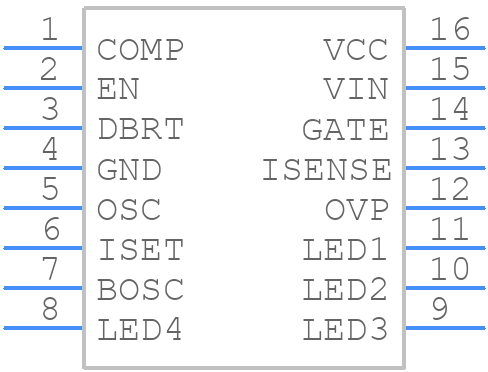

MP3394SGS - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP3394SGS - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16
click to zoom
3D Models
MP3394SGS - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - SOIC16
click to zoom

MP3394SGS Details

  • Manufacturer Part Number:

    MP3394SGS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MP3394SGS Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MP3394SGS. Keep the input and output capacitors close to the IC, and use a solid ground plane to reduce noise. Avoid routing high-frequency signals near the feedback network.
  • The compensation network is critical for stability. Use the datasheet's recommended values as a starting point, and then adjust RCOMP and CCOMP based on the specific application's requirements and load conditions.
  • The maximum input voltage that can be applied to the VIN pin is 26V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • The MP3394SGS is rated for operation up to 125°C, but the junction temperature should be kept below 150°C to ensure reliability. Use a heat sink or thermal pad to dissipate heat if necessary.
  • Use a high-precision voltage reference, and ensure the output voltage is within the specified range. Also, minimize noise and ripple on the input and output lines to ensure accurate and stable output voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP3394SGS Overview

Use the download button to access the MP3394SGS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP339, or try a keyword search, such as Display Drivers
