Part Image

MP34DT05TR-A - STMicroelectronics

Description: STMICROELECTRONICS - MP34DT05TR-A - MEMS MICROPHONE, 3.6V, HCLGA-4

Download MP34DT05TR-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

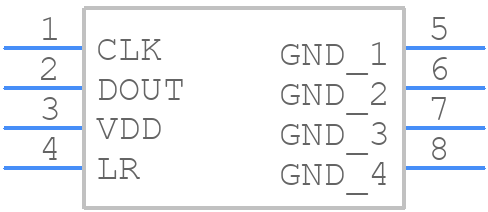

Symbol
MP34DT05TR-A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MP34DT05TR-A - STMicroelectronics PCB footprint - Other - Other - HCLGA (3 x 4 x 1 mm)
click to zoom
3D Models
MP34DT05TR-A - STMicroelectronics - 3D model - Other - HCLGA (3 x 4 x 1 mm)
click to zoom

MP34DT05TR-A Details

  • Manufacturer Part Number:

    MP34DT05TR-A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-CBGA-N4

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    LGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

MP34DT05TR-A Frequently Asked Questions (FAQs)

  • A good PCB layout for the MP34DT05TR-A involves keeping the input and output traces separate, using a ground plane, and minimizing the distance between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor has a low ESR (Equivalent Series Resistance). Additionally, use a 1uF capacitor at the input to filter out noise.
  • The MP34DT05TR-A can handle a maximum input voltage of 12V, but it's recommended to keep the input voltage below 10V for optimal performance and to prevent overheating.
  • The output voltage of the MP34DT05TR-A can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the internal reference voltage (1.25V).
  • The MP34DT05TR-A can provide a maximum output current of 500mA, but it's recommended to keep the output current below 300mA for optimal performance and to prevent overheating.
