Part Image

MP34DT06JTR - STMicroelectronics

Description: 100 Hz ~ 10 kHz Digital, PDM Microphone MEMS (Silicon) Omnidirectional (-26dB ±3dB @ 94dB SPL) Solder Pads

Download MP34DT06JTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

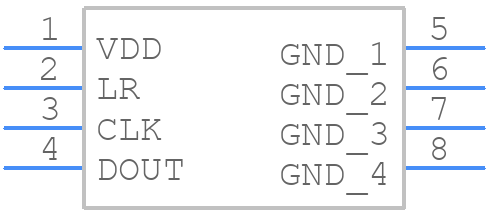

Symbol
MP34DT06JTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MP34DT06JTR - STMicroelectronics PCB footprint - Other - Other - MP34DT06JTR-5
click to zoom
3D Models
MP34DT06JTR - STMicroelectronics - 3D model - Other - MP34DT06JTR-5
click to zoom

MP34DT06JTR Details

  • Manufacturer Part Number:

    MP34DT06JTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HCLGA-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    TERM PITCH-MAX

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-XBGA-N4

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TLGA

  • Package Equivalence Code:

    LGA4,2X2,54/34

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.35 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

MP34DT06JTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the MP34DT06JTR involves keeping the input and output traces separate, using a ground plane, and minimizing the distance between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, it's essential to use the recommended output capacitor values and types, and to place them as close to the IC as possible. Additionally, the input voltage should be well-regulated, and the input capacitor should be of high quality.
  • The MP34DT06JTR can handle input voltages up to 32V, but it's recommended to keep the input voltage below 24V for optimal performance and to prevent overheating.
  • The output voltage of the MP34DT06JTR can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the internal reference voltage (typically 1.25V).
  • The MP34DT06JTR can provide up to 3A of output current, but it's recommended to keep the output current below 2A for optimal performance and to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP34DT06JTR Overview

Use the download button to access the MP34DT06JTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP34D, or try a keyword search, such as Other Consumer ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
