Apex Microtechnology recommends a 4-layer PCB with a dedicated thermal layer, and a thermal pad on the bottom of the device. A heat sink or thermal interface material is also recommended to ensure optimal thermal performance.
To minimize EMI, Apex recommends using a shielded enclosure, keeping the device away from high-frequency sources, and using a low-pass filter on the input and output lines. Additionally, ensure proper grounding and decoupling of the device.
Apex recommends limiting voltage transients on the input pins to ±10% of the nominal input voltage to prevent damage to the device. Exceeding this limit may result in reduced reliability or device failure.
Apex recommends using a systematic approach to troubleshoot issues, starting with checking the input voltage, output voltage, and current. Use an oscilloscope to monitor the device's behavior and check for signs of overheating, oscillation, or other anomalies.
Apex recommends storing the MP400FC in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the pins or electrical connections. Use anti-static packaging and follow proper ESD handling procedures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP400FC Overview

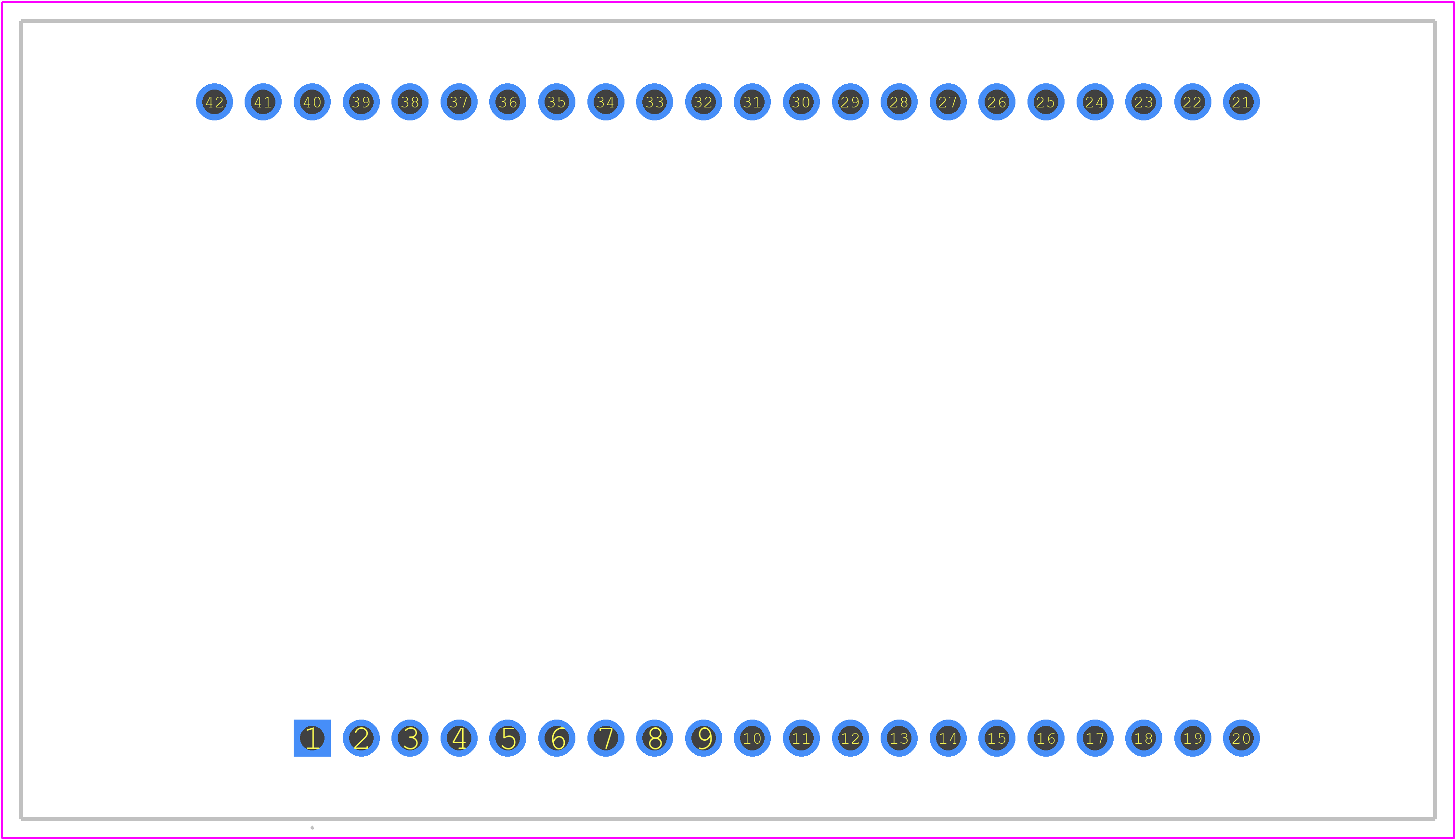

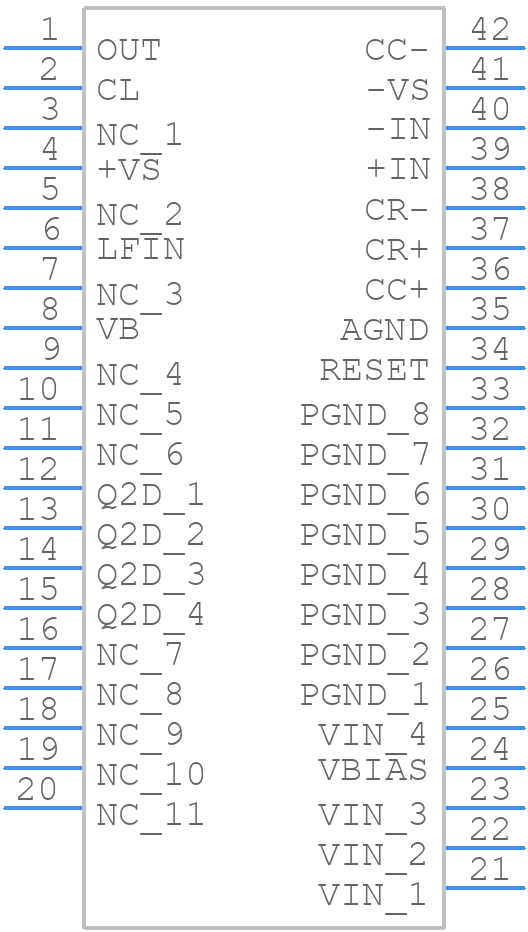

Use the download button to access the MP400FC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP400,
or try a keyword search, such as Operational Amplifiers
