A good PCB layout for the MP4561DQ-LF-P should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal vias are connected to a solid copper plane on the bottom layer. Keep the input and output capacitors close to the device to minimize parasitic inductance.
To optimize the compensation network, start by following the datasheet's recommended values. Then, use simulation tools or empirical methods to fine-tune the network. Pay attention to the crossover frequency, phase margin, and gain margin to ensure stability across the operating range.
While the datasheet specifies a maximum input voltage, it's essential to consider the input voltage ripple as well. A general rule of thumb is to keep the input voltage ripple below 10% of the nominal input voltage to ensure reliable operation and prevent damage to the device.
While ceramic capacitors are suitable for many applications, they might not be the best choice for the output filter capacitor (COUT) in the MP4561DQ-LF-P. Ceramic capacitors can exhibit significant voltage coefficient and temperature dependence, which may affect the output voltage regulation. Instead, consider using a low-ESR electrolytic or polymer capacitor for COUT.
To ensure EMI compliance, follow proper PCB layout practices, such as separating the input and output stages, using a solid ground plane, and minimizing loop areas. Additionally, consider adding EMI filters, such as common-mode chokes or ferrite beads, to the input and output lines. Shielding and enclosure design can also help reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP4561DQ-LF-P Overview

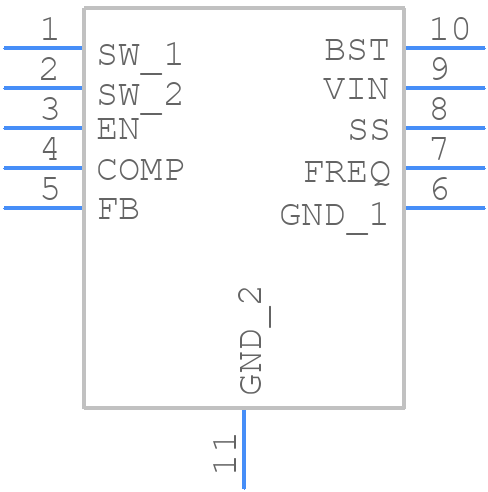

Use the download button to access the MP4561DQ-LF-P schematic symbol, PCB footprint, and 3D model.
