A good PCB layout for the MP4572GQB should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure a clear path for heat to escape. Use a 2-layer or 4-layer PCB with a solid ground plane to reduce thermal resistance. Keep the input and output capacitors close to the device to minimize parasitic inductance.
To optimize output voltage accuracy, use a high-precision resistor divider network for the feedback resistors (RFBT and RFB). Choose resistors with low temperature coefficients (e.g., 1% or better) and ensure they are properly matched. Additionally, consider using a voltage reference IC (e.g., TL431) to improve output voltage accuracy.
Although the datasheet specifies a maximum input voltage of 28V, it's recommended to limit the input voltage to 24V to ensure reliable operation and prevent damage to the device. Exceeding 24V may cause internal overvoltage protection to trigger, which can lead to reduced performance or even device failure.
To minimize high-frequency noise and EMI, use a combination of techniques: (1) Place a 10nF to 100nF ceramic capacitor between the input and GND to filter high-frequency noise. (2) Add a ferrite bead or a common-mode choke in series with the input to reduce EMI. (3) Use a shielded inductor or a low-ESR capacitor for the output filter. (4) Ensure a solid ground plane and use a multi-layer PCB to reduce radiation.
For the input capacitor, use a low-ESR, high-frequency ceramic capacitor (e.g., X7R or X5R) with a value between 10uF to 22uF. This will help filter out high-frequency noise and ensure stable operation. Avoid using electrolytic capacitors, as they may not provide sufficient high-frequency filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP4572GQB Overview

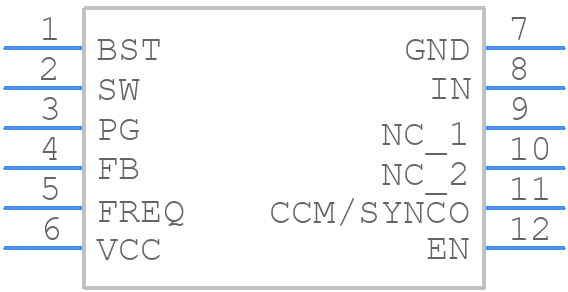

Use the download button to access the MP4572GQB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP457,
or try a keyword search, such as Switching Regulator or Controllers
