MP4581GN-Z - Monolithic Power Systems (MPS)

Description: Switching Voltage Regulators 100V, 0.8A SynchronousBuck Converter

Download MP4581GN-Z Model
Schematic

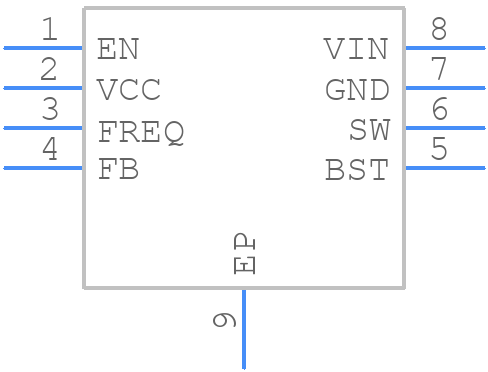

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MP4581GN-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8EP_2025-2.2
click to zoom
3D Models
MP4581GN-Z - Monolithic Power Systems (MPS)  - 3D model - Small Outline Packages - SOIC-8EP_2025-2.2
click to zoom

MP4581GN-Z Details

  • Manufacturer Part Number:

    MP4581GN-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Output Voltage-Max:

    30 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MP4581GN-Z Frequently Asked Questions (FAQs)

  • The MP4581GN-Z can handle input voltages up to 28V, but it's recommended to keep the input voltage below 24V for optimal performance and reliability.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the output capacitor is placed close to the IC and the input capacitor is placed close to the input voltage source.
  • The MP4581GN-Z can provide up to 3A of output current, but it's recommended to keep the output current below 2.5A for optimal performance and reliability.
  • The output voltage of the MP4581GN-Z can be adjusted by using a resistive divider network between the output and the FB pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2.
  • The EN pin is an enable input that allows the user to turn the regulator on or off. To use it, connect the EN pin to a logic-level signal (0V or 5V) to enable or disable the regulator. When the EN pin is low (0V), the regulator is disabled, and when it's high (5V), the regulator is enabled.
