A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, with thermal vias connecting to the top layer under the IC. This helps to dissipate heat efficiently.
To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, as well as the suggested PCB layout. Additionally, make sure to decouple the input voltage with a capacitor and use a low-ESR output capacitor.
The maximum junction temperature for the MP506W-BP is 150°C. It's essential to ensure that the device operates within this temperature range to prevent damage or malfunction.
While the MP506W-BP is a high-quality device, it's essential to check the manufacturer's specific qualifications and certifications for high-reliability or automotive applications. Micro Commercial Components may have additional documentation or testing available to support these types of applications.
To minimize EMI and EMC issues, follow proper PCB layout and design practices, such as keeping the input and output traces separate, using a shielded inductor, and adding EMI filters or shielding to the device. Additionally, ensure that the device is properly grounded and decoupled.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP506W-BP Overview

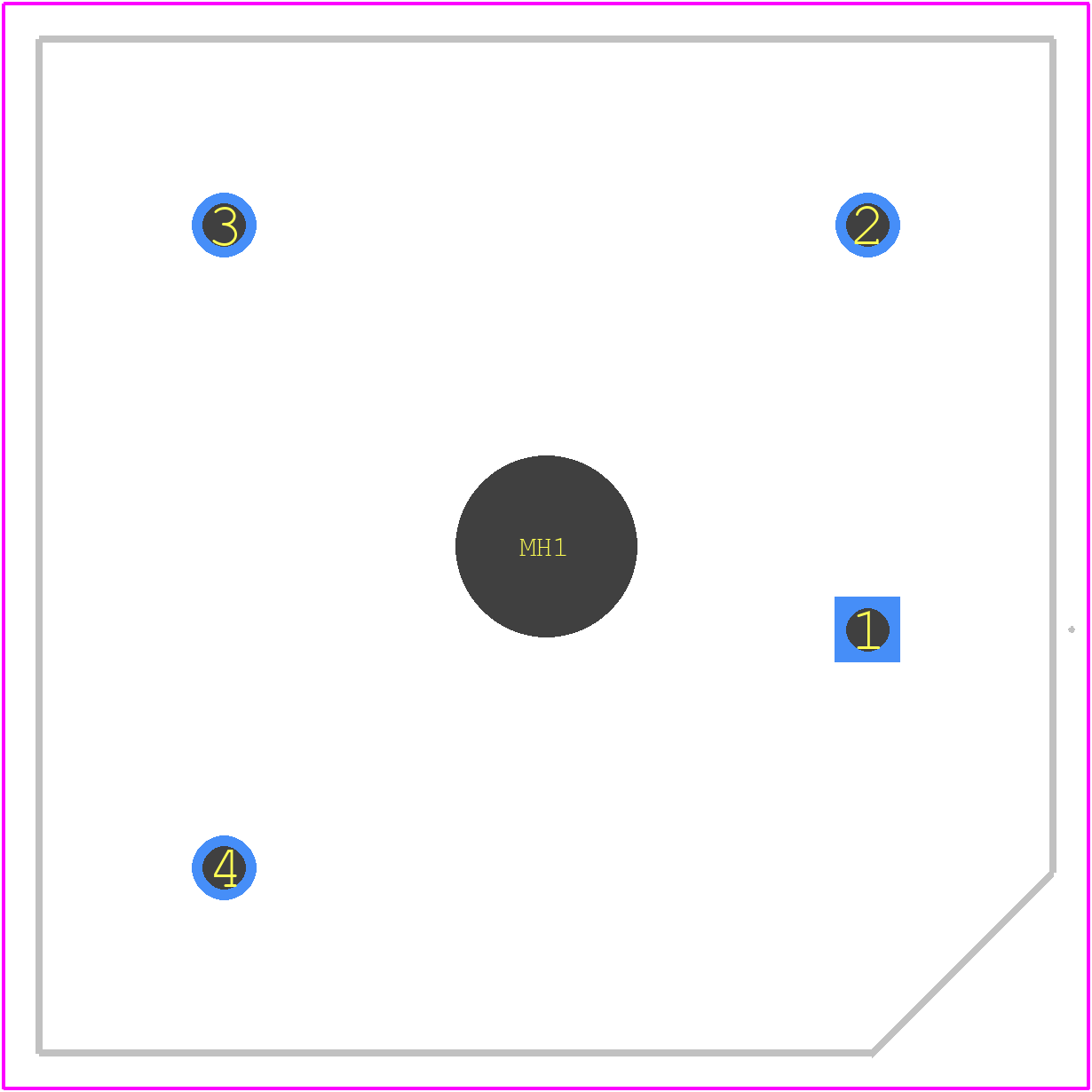

Use the download button to access the MP506W-BP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP506,
or try a keyword search, such as Bridge Rectifier Diodes
