The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, using a minimum of 2oz copper thickness, and ensuring a solid ground plane on the top and bottom layers. Additionally, it's recommended to use vias to connect the thermal pad to the ground plane.
To ensure the device is properly biased, it's essential to follow the recommended operating conditions outlined in the datasheet. This includes setting the input voltage (VIN) to the recommended range, ensuring the output voltage (VOUT) is within the specified range, and providing a stable input capacitor (CIN) and output capacitor (COUT).
Operating the device beyond the recommended temperature range can lead to reduced performance, decreased efficiency, and potentially even damage to the device. It's essential to ensure the device operates within the recommended temperature range to maintain optimal performance and reliability.
To troubleshoot issues with the device, start by verifying the input voltage and current, as well as the output voltage and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Ensure the device is properly biased and the PCB layout is correct. If issues persist, consult the datasheet or contact Micro Commercial Components' technical support for further assistance.
Yes, when designing with the MP508W-BP, it's essential to consider EMI/EMC guidelines to ensure compliance with regulatory standards. This includes using proper shielding, filtering, and grounding techniques, as well as following the recommended PCB layout and component placement guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP508W-BP Overview

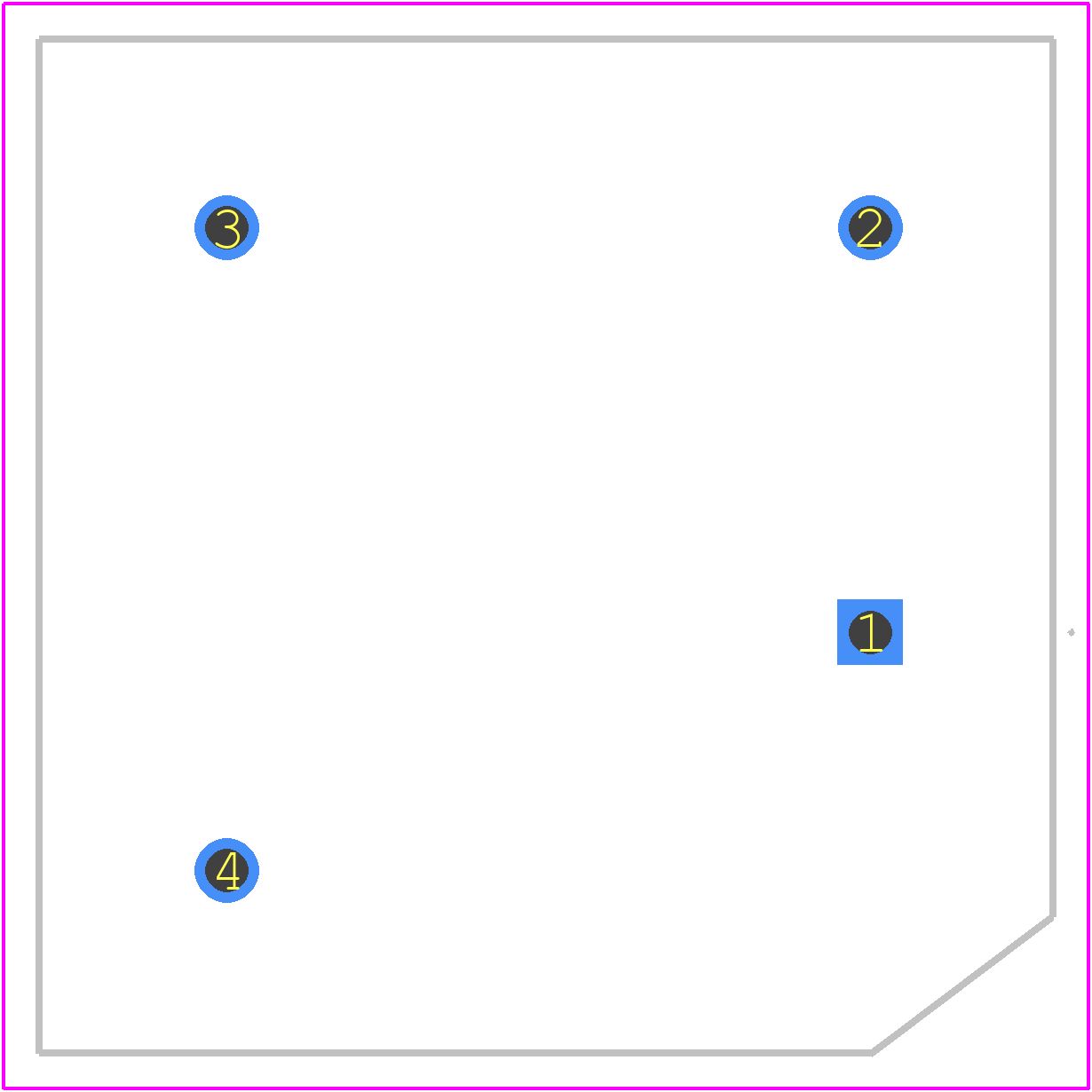

Use the download button to access the MP508W-BP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP508,
or try a keyword search, such as Bridge Rectifier Diodes
