MP62551DJ-LF-Z - Monolithic Power Systems (MPS)

Description: Power Switch ICs - Power Distribution 1Ch .06-1.7A Current Limit Power Switch

Download MP62551DJ-LF-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

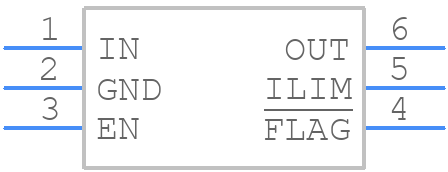

MP62551DJ-LF-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP62551DJ-LF-Z - Monolithic Power Systems (MPS) PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOT23-6
click to zoom
3D Models
MP62551DJ-LF-Z - Monolithic Power Systems (MPS) - 3D model - SOT23 (6-Pin) - TSOT23-6
click to zoom

MP62551DJ-LF-Z Details

  • Manufacturer Part Number:

    MP62551DJ-LF-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7.43

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    1.6 mm

MP62551DJ-LF-Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the MP62551DJ-LF-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good airflow around the component. Use thick copper traces for the input and output connections to reduce resistance and heat generation.
  • To ensure stable output voltage regulation, make sure to decouple the input and output pins with suitable capacitors (e.g., 10uF ceramic capacitors). Additionally, use a low-ESR output capacitor to minimize voltage ripple and ensure a stable output voltage.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input pin. This type of capacitor provides low ESR and is suitable for high-frequency switching converters like the MP62551DJ-LF-Z.
  • The output voltage accuracy and tolerance can be calculated using the formula: Output Voltage = (VFB x R1) / R2, where VFB is the feedback voltage (typically 0.8V for the MP62551DJ-LF-Z). The tolerance is typically ±2% for the output voltage.
  • The MP62551DJ-LF-Z is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 70°C to ensure optimal performance and longevity.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MP62551DJ-LF-Z Overview

Use the download button to access the MP62551DJ-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP625, or try a keyword search, such as Power Management Circuits
