MP6500GF-Z - Monolithic Power Systems (MPS)

Description: IC MTR DRV BIPLR 4.5-35V 28TSSOP

Download MP6500GF-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

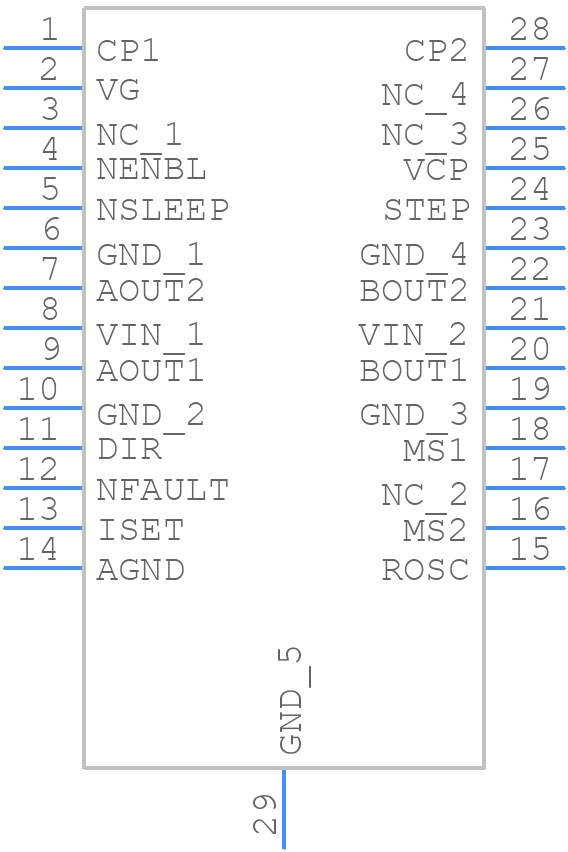

MP6500GF-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP6500GF-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-28 EP
click to zoom
3D Models
MP6500GF-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - TSSOP-28 EP
click to zoom

MP6500GF-Z Details

  • Manufacturer Part Number:

    MP6500GF-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2018-02-06

  • Manufacturer:

    Monolithic Power Systems

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

MP6500GF-Z Frequently Asked Questions (FAQs)

  • The MP6500GF-Z can handle up to 24V input voltage, but it's recommended to operate within the specified input voltage range of 6.5V to 20V for optimal performance and reliability.
  • To ensure output voltage stability, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor (e.g., 10uF to 22uF) and a low-ESR input capacitor (e.g., 1uF to 4.7uF).
  • The minimum input capacitance required is 1uF, but it's recommended to use a higher value (e.g., 4.7uF) to ensure stable operation and reduce input voltage ripple.
  • The MP6500GF-Z is rated for operation up to 125°C, but it's essential to follow the recommended thermal design and layout guidelines to ensure reliable operation in high-temperature environments.
  • The output voltage of the MP6500GF-Z can be calculated using the formula: VOUT = 0.8V x (1 + RFB/RIN), where RFB and RIN are the feedback and input resistors, respectively.
