MP6500GF - Monolithic Power Systems (MPS)

Description: Motor / Motion / Ignition Controllers & Drivers 35V, 2.5A, Stepper Motor Driver

Download MP6500GF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

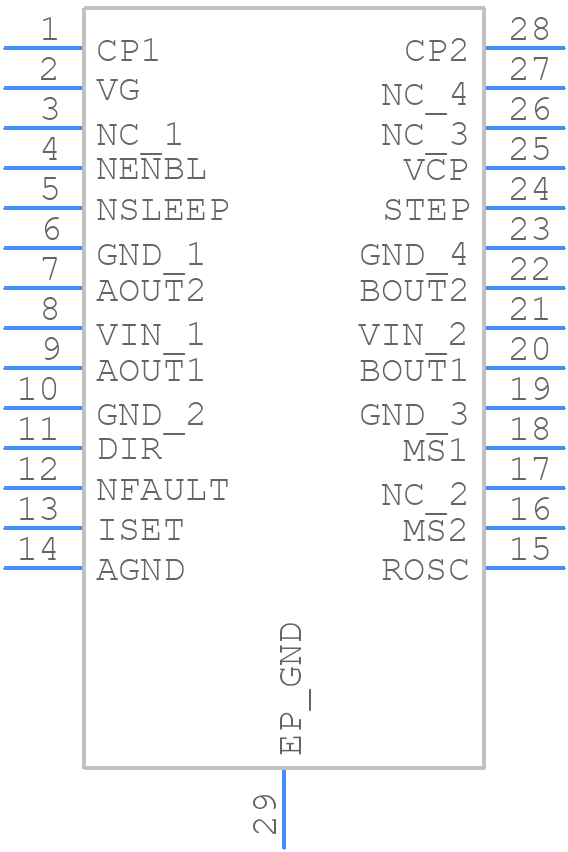

MP6500GF - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP6500GF - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-28 EP
click to zoom
3D Models
MP6500GF - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - TSSOP-28 EP
click to zoom

MP6500GF Details

  • Manufacturer Part Number:

    MP6500GF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-02-06

  • Manufacturer:

    Monolithic Power Systems

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

MP6500GF Frequently Asked Questions (FAQs)

  • The maximum output current of the MP6500GF is 5A, but it can be limited by the thermal performance of the PCB and the ambient temperature.
  • To optimize the layout, place the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. Keep the high-current paths short and wide, and avoid routing high-frequency signals near sensitive analog nodes.
  • The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to minimize input voltage ripple and ensure stable operation.
  • The output voltage of the MP6500GF can be set using a resistive divider network between the VOUT pin and the GND pin. The recommended resistors are 1% tolerance, and the ratio of the resistors determines the output voltage.
  • The thermal derating of the MP6500GF is 30°C/W, which means that the maximum junction temperature of 125°C is reduced by 30°C for every watt of power dissipation above 1W.
