MP6507GF-Z - Monolithic Power Systems (MPS)

Description: Motor / Motion / Ignition Controllers & Drivers 2.7-15V, 700mA Stepper Motor Driver

Download MP6507GF-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

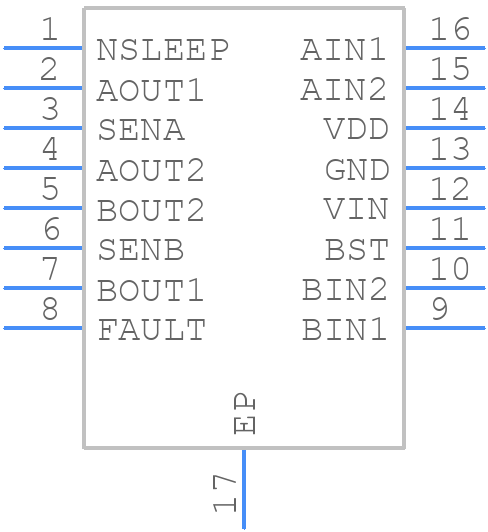

MP6507GF-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP6507GF-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16-EP*
click to zoom
3D Models
MP6507GF-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - TSSOP16-EP*
click to zoom

MP6507GF-Z Details

  • Manufacturer Part Number:

    MP6507GF-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

MP6507GF-Z Frequently Asked Questions (FAQs)

  • The MP6507GF-Z can handle input voltages up to 24V, but it's recommended to keep it below 18V for optimal performance and reliability.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the output voltage within the recommended range of 0.8V to 15V.
  • The MP6507GF-Z can provide up to 5A of output current, but it's recommended to keep it below 4A for optimal performance and thermal management.
  • The soft-start feature can be configured by connecting a capacitor between the SS pin and GND. The recommended value is 10nF to 100nF, but it can be adjusted based on the specific application requirements.
  • The EN pin is the enable pin, which allows the user to turn the regulator on or off. Connect it to VIN to enable the regulator, or to GND to disable it. It can also be used to implement power sequencing or shutdown functionality.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP6507GF-Z Overview

Use the download button to access the MP6507GF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP650, or try a keyword search, such as Motion Control Electronics
