MP6507GF - Monolithic Power Systems (MPS)

Description: Motor / Motion / Ignition Controllers & Drivers 2.7-15V, 700mA Stepper Motor Driver

Download MP6507GF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

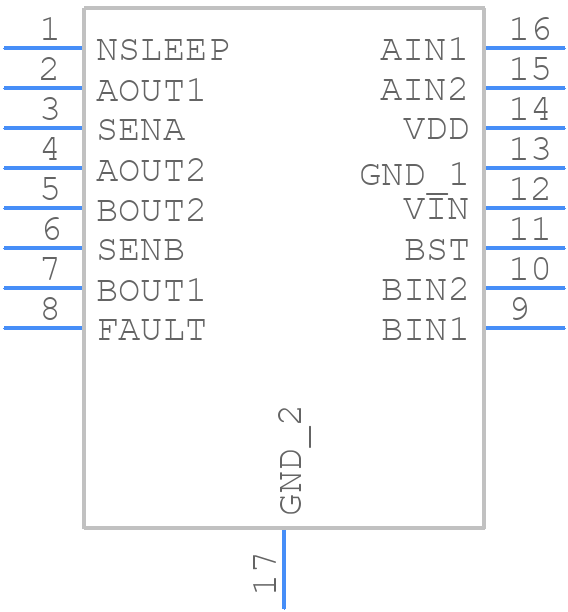

MP6507GF - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP6507GF - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16-EP
click to zoom
3D Models
MP6507GF - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - TSSOP16-EP
click to zoom

MP6507GF Details

  • Manufacturer Part Number:

    MP6507GF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Monolithic Power Systems

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

MP6507GF Frequently Asked Questions (FAQs)

  • The MP6507GF can handle input voltages up to 24V, but it's recommended to keep it below 18V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended layout and component placement guidelines, and use a sufficient output capacitor with a low ESR (Equivalent Series Resistance). A 10uF ceramic capacitor with an ESR of 10mΩ or less is recommended.
  • The minimum input capacitance required is 1uF, but it's recommended to use a 4.7uF or larger capacitor to ensure stable operation and to filter out input voltage noise.
  • The MP6507GF is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation.
  • The output voltage of the MP6507GF can be calculated using the formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the feedback resistors.
