MP6519GQ-Z - Monolithic Power Systems (MPS)

Description: Motor/Motion/Ignition Controllers & Drivers 2.5V - 28V, 5A, H-Bridge Current Reg

Download MP6519GQ-Z Model

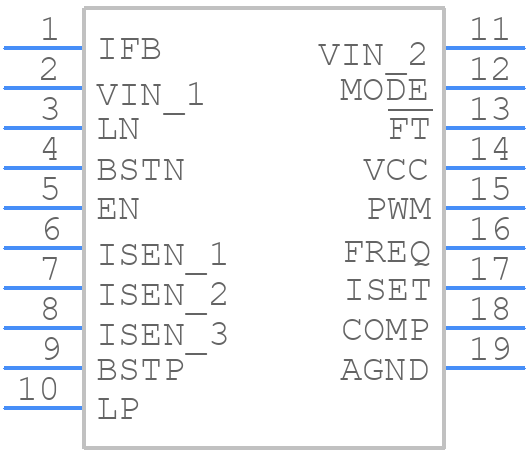

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MP6519GQ-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-19 (3mmx3mm)-2021
click to zoom
3D Models
MP6519GQ-Z - Monolithic Power Systems (MPS)  - 3D model - Other - QFN-19 (3mmx3mm)-2021
click to zoom

MP6519GQ-Z Details

  • Manufacturer Part Number:

    MP6519GQ-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-19

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N19

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC19(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    345 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    3 mm

MP6519GQ-Z Frequently Asked Questions (FAQs)

  • The MP6519GQ-Z can handle a maximum input voltage of 24V, but it's recommended to keep it below 20V for optimal performance and reliability.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the output capacitor is placed close to the IC and the input capacitor is placed close to the input voltage source.
  • The MP6519GQ-Z can provide a maximum output current of 1.5A, but it's recommended to keep it below 1.2A for optimal performance and reliability.
  • The output voltage can be adjusted by using a resistive divider network between the output and the FB pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage.
  • The EN (Enable) pin is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled.
