MP6531AGR-Z - Monolithic Power Systems (MPS)

Description: Motor / Motion / Ignition Controllers & Drivers 5V - 60V, Three-Phase, Brushless,DC Motor Pre-Driver

Download MP6531AGR-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

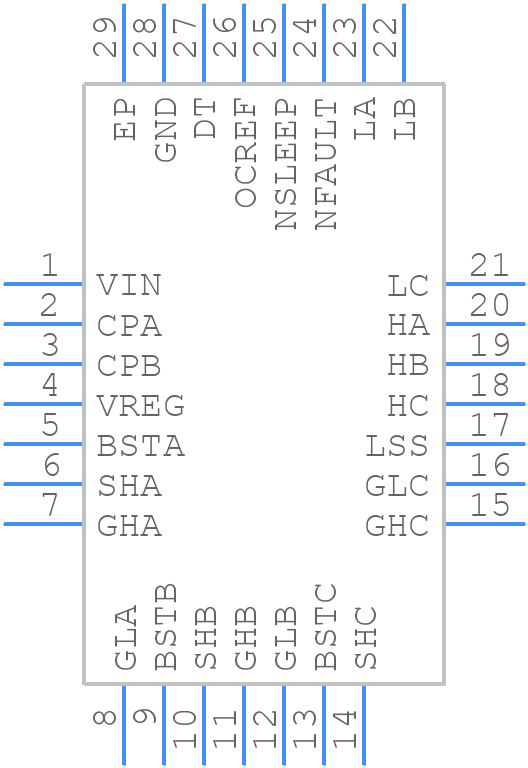

MP6531AGR-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP6531AGR-Z - Monolithic Power Systems (MPS) PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DCK (R-PDSO-G6)QFN-28 (4mmx4mm)
click to zoom
3D Models
MP6531AGR-Z - Monolithic Power Systems (MPS) - 3D model - Quad Flat No-Lead - DCK (R-PDSO-G6)QFN-28 (4mmx4mm)
click to zoom

MP6531AGR-Z Details

  • Manufacturer Part Number:

    MP6531AGR-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    9

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

MP6531AGR-Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the MP6531AGR-Z should minimize the area of the power loops, keep the input and output capacitors close to the IC, and use a solid ground plane to reduce noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and add a 10nF-22nF capacitor in parallel with the output capacitor to dampen oscillations.
  • The MP6531AGR-Z can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
  • The output voltage of the MP6531AGR-Z can be adjusted by changing the resistor divider ratio of the feedback resistors (R1 and R2) according to the formula: Vout = 0.8V x (1 + R2/R1).
  • The MP6531AGR-Z can deliver up to 3A of output current, but it's recommended to keep the output current below 2.5A for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP6531AGR-Z Overview

Use the download button to access the MP6531AGR-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP653, or try a keyword search, such as Motion Control Electronics
