MP6534GU-Z - Monolithic Power Systems (MPS)

Description: Motor/Motion/Ignition Controllers & Drivers 5V-55V 3PH Brshls DC Motor PreDriver

Download MP6534GU-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

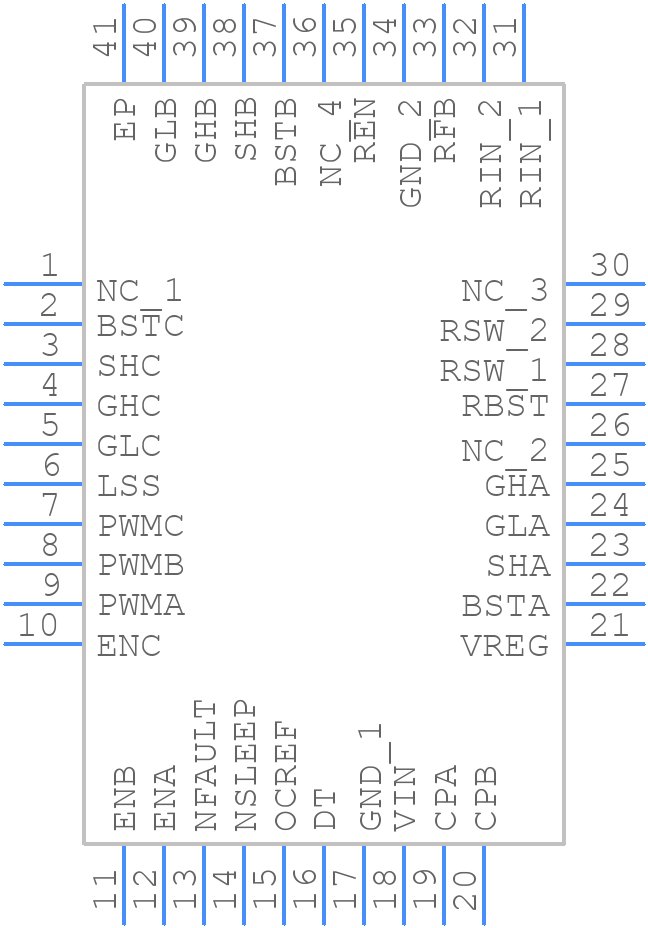

MP6534GU-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP6534GU-Z - Monolithic Power Systems (MPS) PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MP6536DU-LF-Z
click to zoom
3D Models
MP6534GU-Z - Monolithic Power Systems (MPS) - 3D model - Quad Flat No-Lead - MP6536DU-LF-Z
click to zoom

MP6534GU-Z Details

  • Manufacturer Part Number:

    MP6534GU-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER
