MP6538GV-Z - Monolithic Power Systems (MPS)

Description: Motor / Motion / Ignition Controllers & Drivers 100V, Three-Phase BLDC Motor Pre-Driver

Download MP6538GV-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

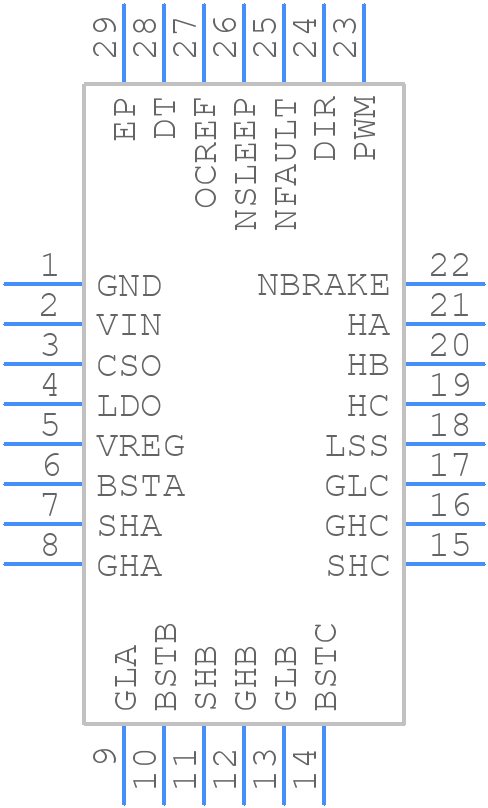

Symbol
MP6538GV-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP6538GV-Z - Monolithic Power Systems (MPS) PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - qfn_28
click to zoom
3D Models
MP6538GV-Z - Monolithic Power Systems (MPS) - 3D model - Quad Flat No-Lead - qfn_28
click to zoom

MP6538GV-Z Details

  • Manufacturer Part Number:

    MP6538GV-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XQCC-N28

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    100 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

MP6538GV-Z Frequently Asked Questions (FAQs)

  • The MP6538GV-Z can handle input voltages up to 24V, but it's recommended to keep the input voltage below 18V for optimal performance and reliability.
  • To minimize EMI, it's recommended to keep the input and output capacitors close to the IC, use a solid ground plane, and keep the high-current paths short and direct. Additionally, use a shielded inductor and orient it to minimize radiation.
  • The recommended output capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The recommended value is 10uF to 22uF, depending on the output voltage and current requirements.
  • The output voltage of the MP6538GV-Z can be adjusted by changing the resistor divider ratio between the FB pin and the output voltage. A higher resistor value will increase the output voltage, while a lower value will decrease it.
  • The MP6538GV-Z can deliver up to 3A of output current, but the actual current limit depends on the input voltage, output voltage, and thermal conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP6538GV-Z Overview

Use the download button to access the MP6538GV-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP653, or try a keyword search, such as Motion Control Electronics
