The maximum junction temperature (TJ) that the MP6612DGF-Z can operate at is 150°C, as specified in the datasheet. However, it's recommended to keep TJ below 125°C for optimal performance and reliability.
Yes, the MP6612DGF-Z is designed to operate in high-vibration environments. It has a robust package design and internal construction that can withstand vibrations up to 10G peak acceleration. However, it's recommended to follow proper PCB design and mounting guidelines to ensure reliable operation.
To ensure the MP6612DGF-Z meets the required EMC standards, follow the recommended PCB layout and design guidelines provided in the datasheet. Additionally, use proper shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). It's also recommended to perform EMC testing and certification according to relevant industry standards.
The recommended input capacitor type for the MP6612DGF-Z is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out input noise and ensure stable operation. However, the exact value and type may vary depending on the specific application and input voltage conditions.
Yes, the MP6612DGF-Z can be used in a parallel configuration to increase output current. However, it's essential to follow the recommended guidelines for paralleling DC-DC converters, including using identical components, ensuring proper synchronization, and providing adequate heat sinking and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP6612DGF-Z Overview

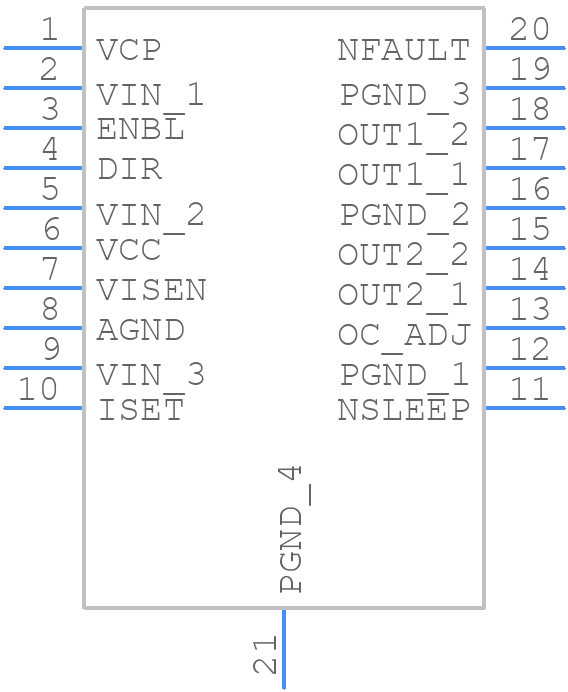

Use the download button to access the MP6612DGF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP661,
or try a keyword search, such as Motion Control Electronics
