The maximum input voltage that can be applied to the MP6614GN-Z is 28V, although the recommended maximum input voltage is 24V for optimal performance and reliability.
To ensure the MP6614GN-Z operates within its thermal limits, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to keep the ambient temperature below 85°C. Additionally, the device's thermal shutdown feature will activate if the junction temperature exceeds 150°C, turning off the device to prevent damage.
The minimum input capacitance required for the MP6614GN-Z is 10uF, although a larger capacitance value (e.g., 22uF) is recommended to ensure stable operation and minimize input voltage ripple.
Yes, the MP6614GN-Z is suitable for high-reliability and automotive applications due to its high-quality manufacturing process, robust design, and compliance with relevant industry standards such as AEC-Q100.
The output voltage of the MP6614GN-Z can be adjusted by connecting a resistive divider network between the output pin and the ground pin, and then connecting the feedback pin to the center tap of the divider network. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP6614GN-Z Overview

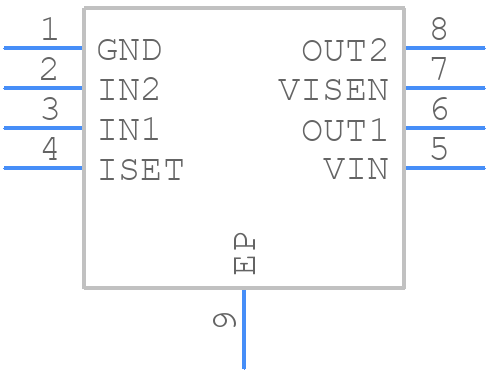

Use the download button to access the MP6614GN-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP661,
or try a keyword search, such as Motion Control Electronics
