The maximum input voltage that can be applied to the MP6619GQ-Z is 26V, although the recommended maximum operating voltage is 24V to ensure reliable operation and to prevent damage to the device.
To ensure the MP6619GQ-Z operates within its thermal limits, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device's junction temperature (TJ) below 125°C. You can estimate the TJ using the thermal resistance (RθJA) and the power dissipation (PD) of the device.
The minimum input capacitance required for the MP6619GQ-Z is 10uF, although it's recommended to use a higher value, such as 22uF or 47uF, to ensure stable operation and to filter out input voltage ripple.
Yes, the MP6619GQ-Z is suitable for high-reliability and automotive applications due to its high-quality manufacturing process, robust design, and compliance with various industry standards, such as AEC-Q100. However, it's essential to consult with Monolithic Power Systems or a qualified engineer to ensure the device meets the specific requirements of your application.
The output voltage of the MP6619GQ-Z can be adjusted by connecting a resistor divider network between the output voltage pin (VOUT) and the ground pin (GND). The resistor values can be calculated using the output voltage adjustment formula provided in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP6619GQ-Z Overview

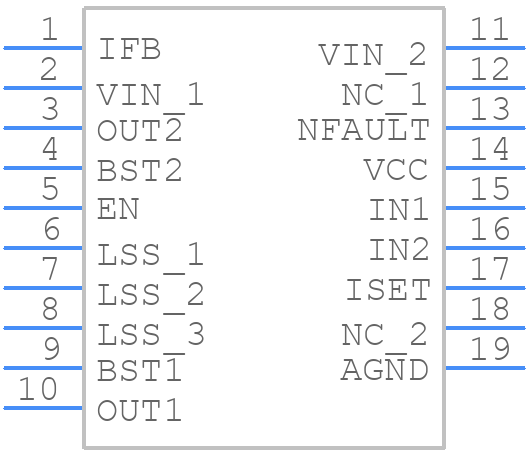

Use the download button to access the MP6619GQ-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP661,
or try a keyword search, such as Motion Control Electronics
