MP7741DQ-LF-Z footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

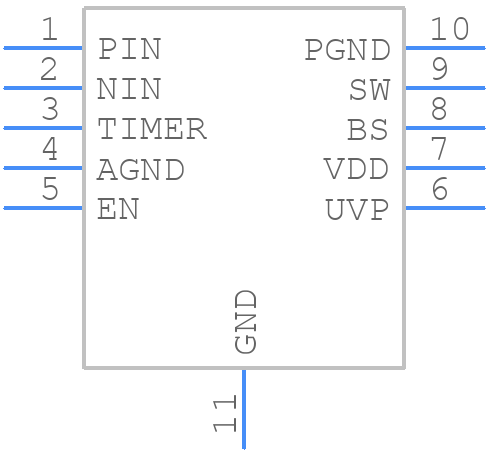

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MP7741DQ-LF-Z
Part Number MP7741DQ-LF-Z
Manufacturer Monolithic Power Systems (MPS)
Pin Count 11
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - QFN10 (3mm x 3mm)
Released Date Dec 8, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MP7741DQ-LF-Z Details

Manufacturer Part Number:
MP7741DQ-LF-Z
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-10
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Factory Lead Time:
24 Weeks
Manufacturer:
Monolithic Power Systems
YTEOL:
8
Consumer IC Type:
CLASS D AUDIO AMPLIFIER
JESD-30 Code:
S-PDSO-N10
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Power-Nom:
10.6 W
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC10,.12,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
36 V
Supply Voltage-Min (Vsup):
9.5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
3 mm

MP7741DQ-LF-Z Frequently Asked Questions (FAQs)

The maximum input voltage that can be applied to the VIN pin is 24V, but it's recommended to keep it below 18V for optimal performance and reliability.
To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the output capacitor is placed close to the device and connected to the GND pin.
The maximum output current that the MP7741DQ-LF-Z can deliver is 4A, but it's recommended to keep it below 3.5A for optimal performance and reliability.
The output voltage can be adjusted by using a resistor divider network between the FB pin and the output voltage. The ratio of the resistors determines the output voltage, and the datasheet provides a formula to calculate the resistor values.
The EN pin is an enable input that allows the device to be turned on or off. A logic high on the EN pin enables the device, while a logic low disables it. This pin can be used to implement power sequencing or to turn off the device when not in use.

Trust Checks

Community Provided

System Verified

Community Approved

MP7741DQ-LF-Z Overview

Use the download button to access the MP7741DQ-LF-Z schematic symbol, PCB footprint, and 3D model.
