MP7770GF-P - Monolithic Power Systems (MPS)

Description: 9.5V-to-36V Operation from a Single Supply • ±8.5A Peak Current Output • Output Power at 36V and 10%THD: - Stereo Single-Ended: 2 x 45W into 4Ω Load, - Bridge-Tied Load: 90W into 8Ω Load • THD+N = 0.03% at 1W, 8Ω • > 90% Efficiency at 10%THD • Low Noise

Download MP7770GF-P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

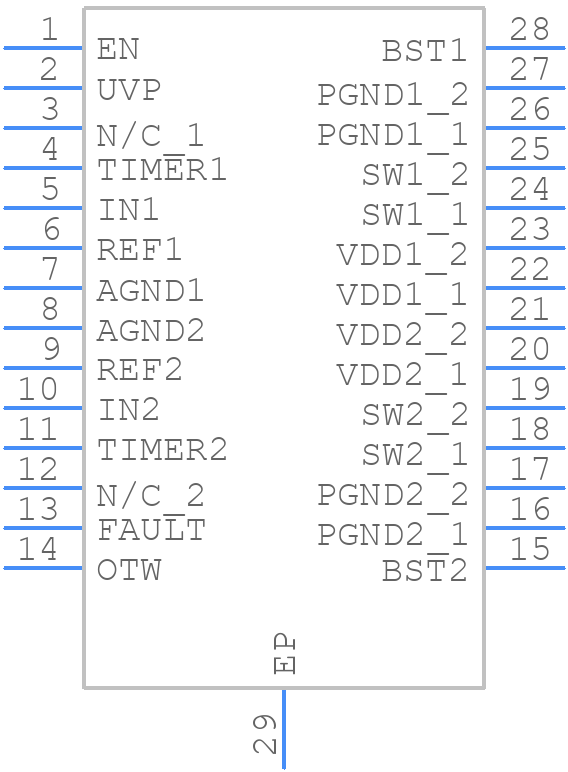

MP7770GF-P - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP7770GF-P - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP28-EP
click to zoom

MP7770GF-P Details

  • Manufacturer Part Number:

    MP7770GF-P

  • Manufacturer:

    Monolithic Power Systems

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP7770GF-P Overview

Use the download button to access the MP7770GF-P schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MP777, or try a keyword search, such as Audio/Video Amplifiers
