MP8003AGQ-Z - Monolithic Power Systems (MPS)

Description: Power Switch ICs - POE / LAN IEEE 802.3af/at High Power PoE interface with AUX control

Download MP8003AGQ-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

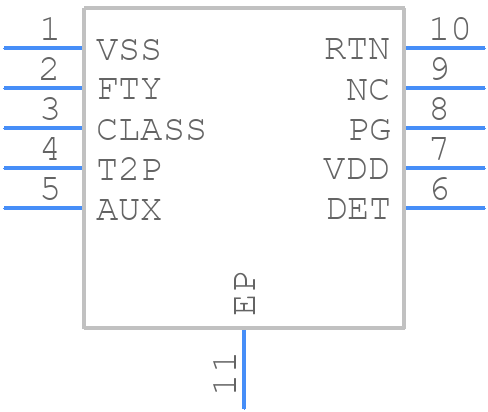

MP8003AGQ-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP8003AGQ-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline No-lead - Small Outline No-lead - QFN10 (3mm x 3mm)
click to zoom
3D Models
MP8003AGQ-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline No-lead - QFN10 (3mm x 3mm)
click to zoom

MP8003AGQ-Z Details

  • Manufacturer Part Number:

    MP8003AGQ-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    48 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    SUPPORT CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MP8003AGQ-Z Frequently Asked Questions (FAQs)

  • The MP8003AGQ-Z can handle a maximum input voltage of 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the output capacitor is placed close to the IC and the input capacitor is placed close to the input voltage source.
  • The MP8003AGQ-Z can provide a maximum output current of 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.
  • The output voltage can be adjusted by using a resistive divider network between the output pin and the ground pin. The output voltage is determined by the ratio of the resistors in the divider network.
  • The EN (Enable) pin is used to enable or disable the regulator. When the EN pin is high, the regulator is enabled, and when it's low, the regulator is disabled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP8003AGQ-Z Overview

Use the download button to access the MP8003AGQ-Z schematic symbol, PCB footprint, and 3D model.
