The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane, using thermal vias to connect the exposed pad to the ground plane, and keeping the thermal path as short as possible.
To optimize the output voltage accuracy, ensure that the input voltage is within the recommended range, use a high-precision resistor divider for the feedback network, and minimize the noise on the FB pin by using a low-pass filter or a capacitor to ground.
The maximum capacitive load that the MP8675DN-LF-Z can drive is 10uF, but it's recommended to derate the capacitance value based on the output voltage and frequency to ensure stability.
To prevent oscillations or instability in the output voltage, ensure that the output capacitor is properly sized and placed close to the device, use a low-ESR capacitor, and add a small series resistor (e.g., 1-2 ohms) to the output capacitor to dampen the ringing.
The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a voltage rating of at least 2x the input voltage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MP8675DN-LF-Z Overview

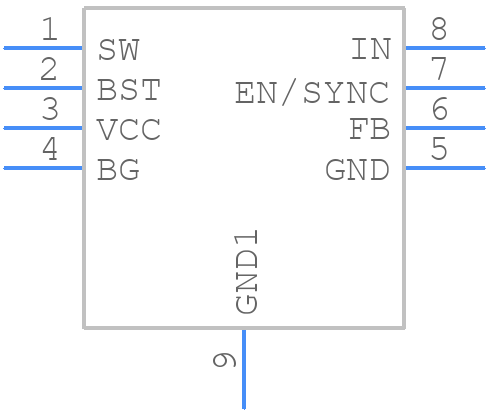

Use the download button to access the MP8675DN-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP867,
or try a keyword search, such as Switching Regulator or Controllers
