A good PCB layout for the MP8762GLE-Z should prioritize thermal dissipation. Place the IC near a thermal pad or a heat sink, and ensure good airflow around the component. Use a 2-layer or 4-layer PCB with a solid ground plane to reduce thermal resistance. Keep the input and output capacitors close to the IC to minimize parasitic inductance.
To optimize output voltage accuracy and stability, ensure that the input voltage is within the recommended range (4.5V to 18V). Use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a suitable voltage rating. Additionally, minimize the distance between the output capacitor and the IC, and use a low-impedance connection to the output pin.
For the MP8762GLE-Z, a high-quality, low-ESR input capacitor with a value between 1uF to 10uF is recommended. A ceramic capacitor (X5R or X7R dielectric) or a film capacitor (e.g., polypropylene or polyester) is suitable. The capacitor should be rated for the maximum input voltage and have a low impedance at the switching frequency (around 1MHz).
To ensure the OCP is triggered correctly, connect a sense resistor (Rs) between the output pin and the GND pin. The sense resistor value should be chosen based on the desired overcurrent threshold (e.g., 0.1Ω for a 3A threshold). The OCP threshold is typically set to 1.5 times the sense resistor value. Ensure the sense resistor is placed close to the IC and has a low thermal coefficient.
For high-power applications, a combination of thermal management strategies is recommended. Use a heat sink with a thermal interface material (TIM) to reduce thermal resistance. Ensure good airflow around the heat sink and consider using a fan for forced convection. Additionally, use a thermal pad or a thermal interface material (TIM) between the IC and the heat sink to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP8762GLE-Z Overview

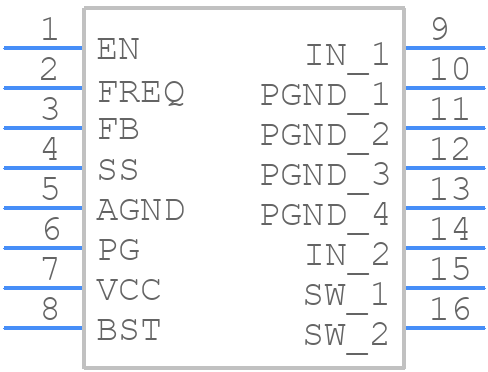

Use the download button to access the MP8762GLE-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP876,
or try a keyword search, such as Switching Regulator or Controllers
