MPC17510AEJ - NXP

Description: Motor/Motion/Ignition Controllers & Drivers H-Bridge, Low Voltage, DC Brushed Motor Driver, 2-15V, 3.8A, 200kHz, TSSOP20-EP

Download MPC17510AEJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

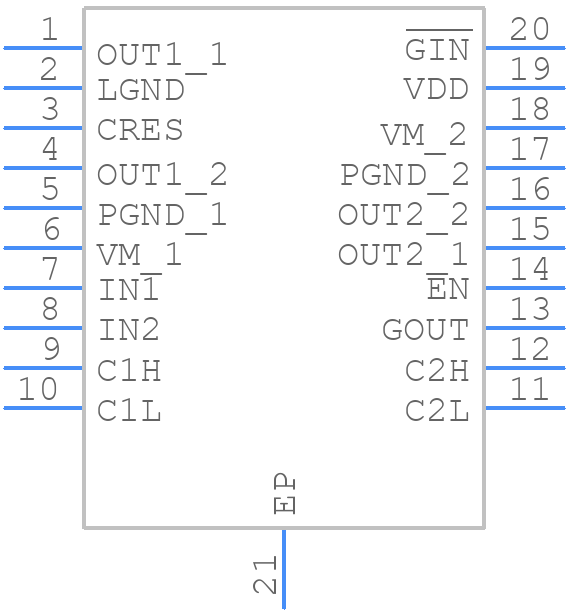

MPC17510AEJ - NXP - PCB symbol
click to zoom
PCB Footprints
MPC17510AEJ - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT527-1
click to zoom
3D Models
MPC17510AEJ - NXP - 3D model - Small Outline Packages - SOT527-1
click to zoom

MPC17510AEJ Details

  • Manufacturer Part Number:

    MPC17510AEJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    3.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

MPC17510AEJ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and use a common grounding point for the device. Refer to the NXP application note AN11535 for more details.
  • Use a thermal pad on the bottom of the package, and ensure good thermal conductivity between the device and the PCB. Use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K. Refer to the NXP application note AN11536 for more details.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • Follow the power-up sequence outlined in the datasheet, and ensure that the device is properly configured by setting the correct registers and configuration bits. Refer to the NXP application note AN11534 for more details.
  • The recommended oscillator crystal frequency is 16 MHz. However, the device can operate with crystals in the range of 10 MHz to 20 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPC17510AEJ Overview

Use the download button to access the MPC17510AEJ schematic symbol, PCB footprint, and 3D model.
