MPC17531ATEJ - NXP

Description: Motor / Motion / Ignition Controllers & Drivers H-Bridge, Dual, Low Voltage, Stepper & DC Brushed Motor Driver, 2-8.6V, 1.4A, 200kHz, TSSOP-EP

Download MPC17531ATEJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

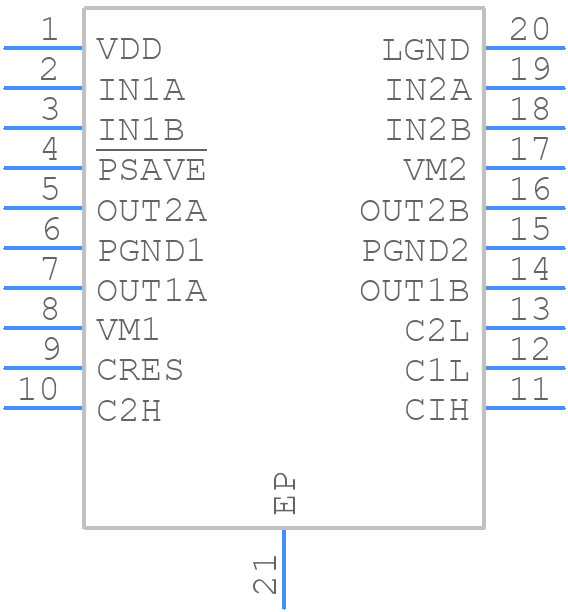

MPC17531ATEJ - NXP - PCB symbol
click to zoom
PCB Footprints
MPC17531ATEJ - NXP PCB footprint - Small Outline Packages - Small Outline Packages - MPC17531ATEJ
click to zoom
3D Models
MPC17531ATEJ - NXP - 3D model - Small Outline Packages - MPC17531ATEJ
click to zoom

MPC17531ATEJ Details

  • Manufacturer Part Number:

    MPC17531ATEJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    6.5 X 4.4 MM, 0.95 MM HEIGHT, 0.65 PITCH, ROHS COMPLIANT, TSSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    1.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    8.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

MPC17531ATEJ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MPC17531ATEJ involves keeping the power and ground planes separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power supply, connect the VDD pin to a stable 3.3V power source, and decouple it with a 10uF capacitor. Also, ensure that the power supply can provide enough current to support the device's operating current.
  • The maximum operating frequency of the MPC17531ATEJ is 32 kHz, but it can be overclocked to 40 kHz with reduced accuracy. However, it's recommended to operate within the specified frequency range for optimal performance.
  • To configure the MPC17531ATEJ for low-power operation, set the device to sleep mode when not in use, reduce the clock frequency, and minimize the number of active peripherals. Additionally, use the device's built-in power-saving features, such as the low-power oscillator and the power-down mode.
  • The internal oscillator on the MPC17531ATEJ has an accuracy of ±2% over the operating temperature range of -40°C to 125°C. This accuracy can be improved by using an external crystal oscillator or a more accurate clock source.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPC17531ATEJ Overview

Use the download button to access the MPC17531ATEJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPC17, or try a keyword search, such as Motion Control Electronics

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
