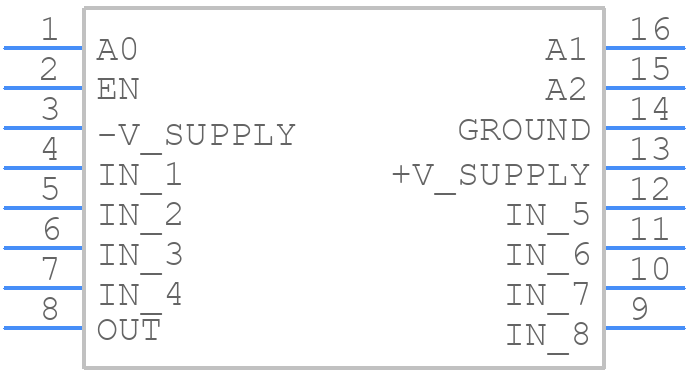

MPC508AUG4 - Texas Instruments

MPC508AUG4 Details

• Manufacturer Part Number:

  MPC508AUG4

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Pin Count:

  16

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Configuration : 8:1

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• Input Voltage-Max:

  15 V

• Input Voltage-Min:

  -15 V

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  10.3 mm

• Moisture Sensitivity Level:

  2

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Normal Position:

  NO

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  68 dB

• On-state Resistance-Max (Ron):

  1500 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Signal Current-Max:

  0.02 A

• Supply Current-Max (Isup):

  1.5 mA

• Supply Voltage-Max (Vsup):

  15 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  500 ns

• Switch-on Time-Max:

  500 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm
